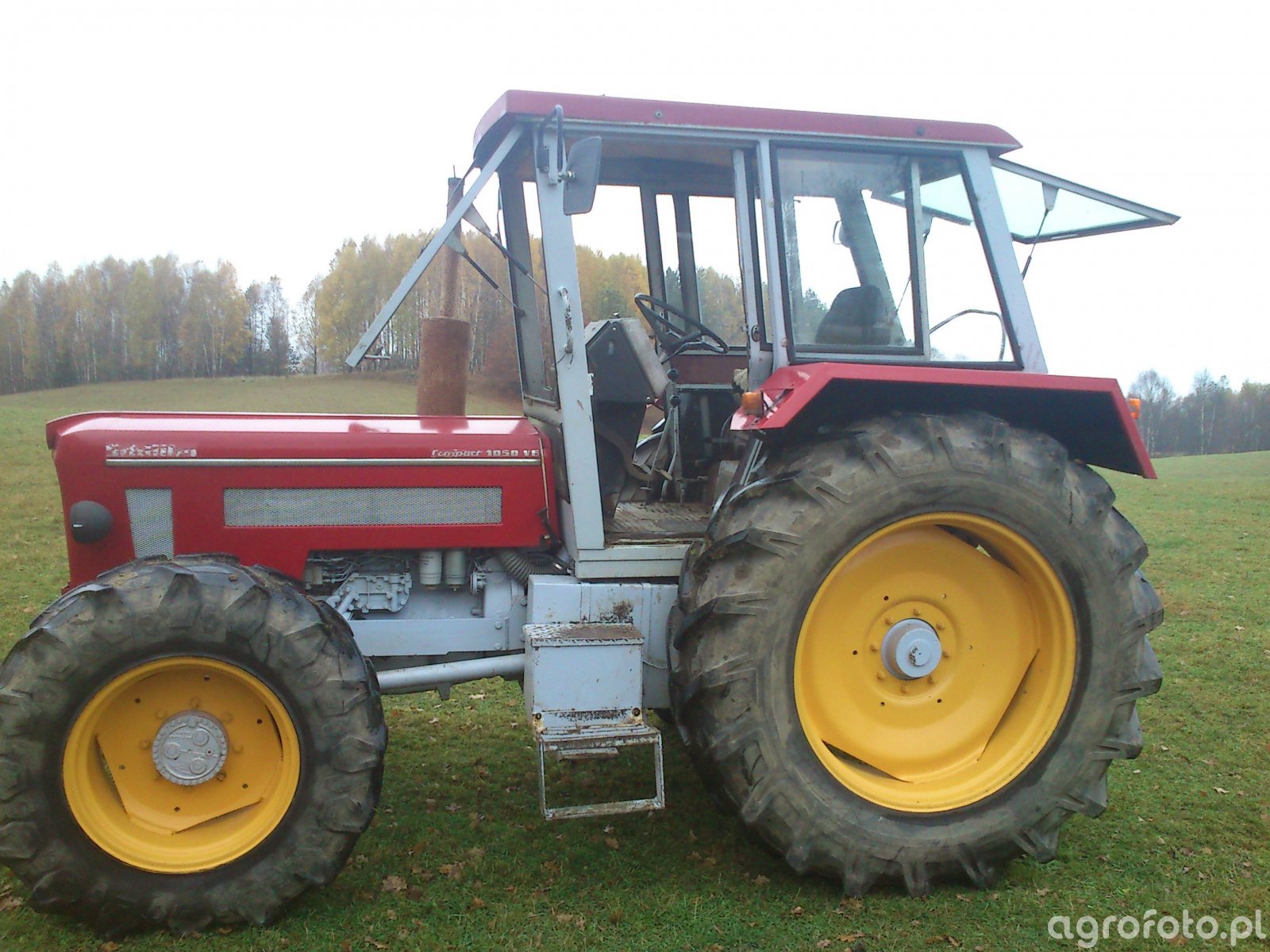

Schluter Compact 1050T
Schluter Compact 1050T — Model year 1974-19771978-1981 · 100 hp. Reference specifications; pending source verification.
The Schluter Compact 1050T tractor model has a rating of approximately 100 hp, a mid-range figure for its class. It was produced from 1974 to 1981. The tractor features a 4-cylinder turbocharged diesel engine paired with four-wheel drive and a hydrostatic transmission. Its operating weight ranges from 7960 to 8908 pounds.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
7960 to 8908 pounds
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
100 hp
Recorded weight
3610 kg
Transmissions
12-speed
Production years
1974-1981
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Two- or four-wheel driveReference
Steeringhydrostatic powerReference
Drum brakesReference
Engine
Schluter 4.8L 4-cyl dieselReference
Fuel tank124.9 LReference
Engine74.6 kWReference
Schluter SDMT 110 W 4Reference
turbocharged dieselReference
4-cylinderReference
Displacement4.8 LReference
Bore/Stroke110 x 125 mmReference
Power74.6 kWReference
Rated RPM1800Reference
Torque432.0 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Rear lift3200 kgReference
Rear lift3600 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase234 cmReference
Weight7960 to 8908 poundsReference
Front tire7.50-20Reference
Rear tire16.9-34Reference
Ag front7.50-20 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear16.9-34Reference
Length394 cmReference
Height250 cmReference
Weight3610 kgReference
Weight4040 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
