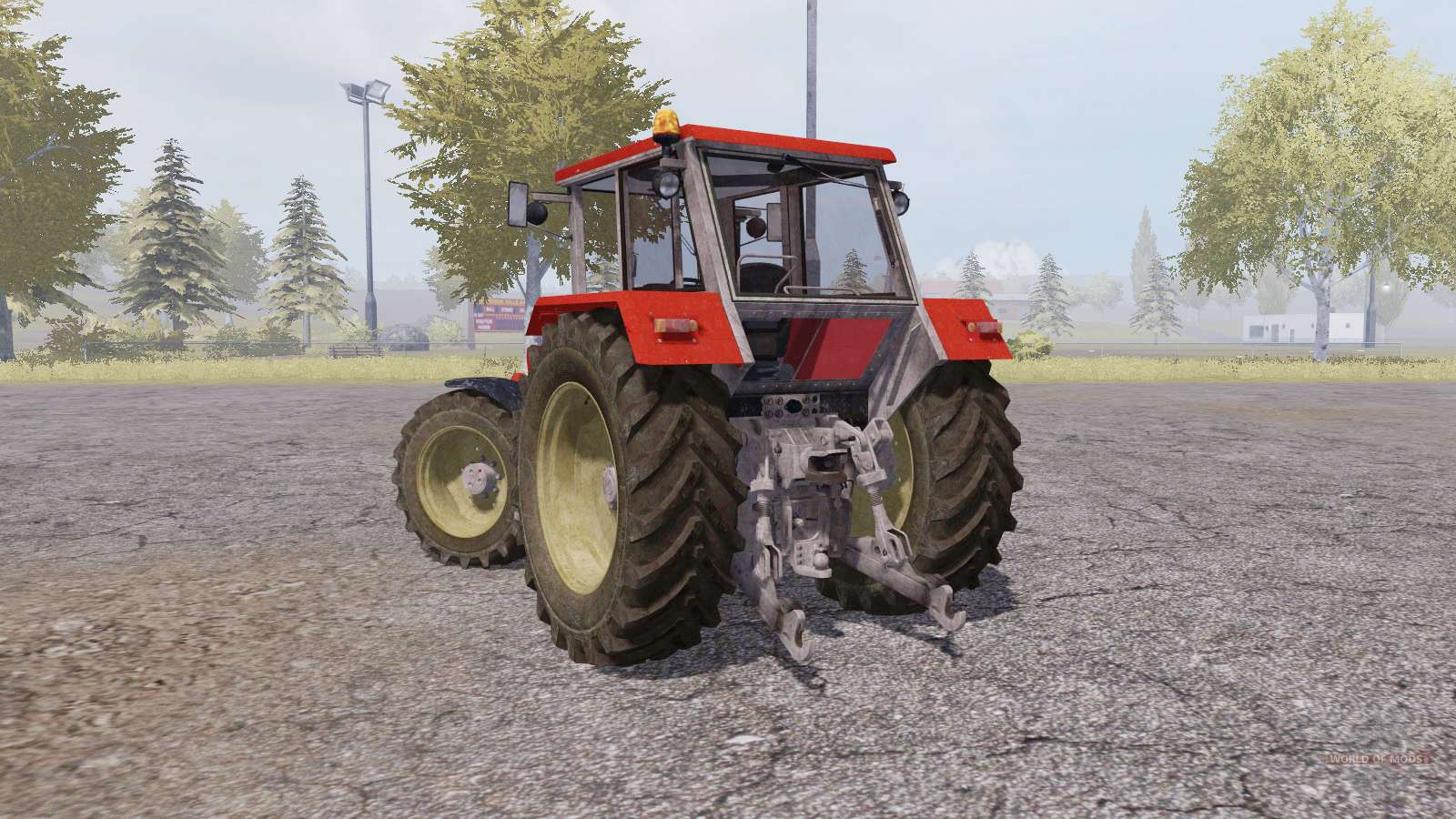

The Schluter Compact 1150 TV 6 is a tractor model with a rated output of 110 hp, placing it near the middle of its class in terms of power. Produced between 1983 and 1985, the Compact 1150 TV 6 is equipped with a 6-cylinder turbocharged diesel engine, coupled with a hydrostatic transmission and four-wheel drive. Its listed weight is 4920 kg and it is suited for tasks involving approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
4920 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
110 hp
Recorded weight
4920 kg
Transmissions
12-speed
Production years
1983-1985
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Drum brakesReference
Engine
MAN 5.7L 6-cyl dieselReference
Fuel tank160.1 LReference
Engine82.0 kWReference
MAN D 0226 MTE 51Reference
turbo dieselReference
6-cylinderReference
Displacement5.7 LReference
Bore/Stroke102 x 116 mmReference
Power82.0 kWReference
Rated RPM2200Reference
Torque428.1 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 5 reverseReference
PTO & Hydraulics
Total flow45.0 lpmReference
Rear lift3900 kgReference
Rear lift5200 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase244 cmReference
Wheelbase240 cmReference
Weight4920 kgReference
Front tire12.4R28Reference
Rear tire18.4R38Reference
Ag front12.4R28Reference
Ag rear18.4R38Reference
Length417 cmReference
Height271 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
