Tractor · 1972Unverified

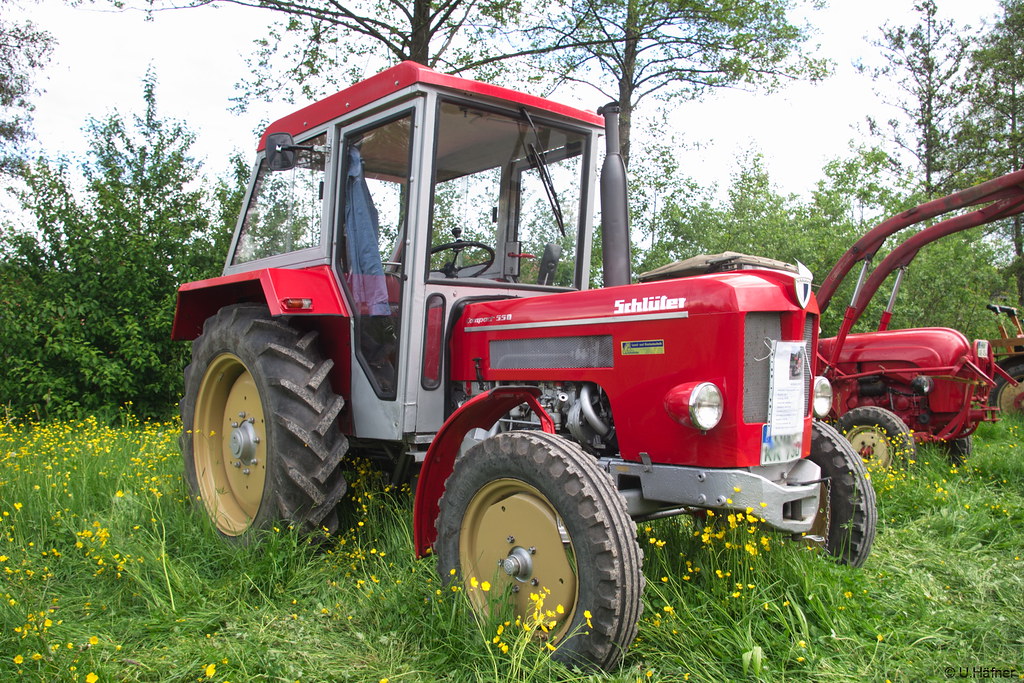

Schluter Compact 550
Schluter Compact 550 · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Weight
5931 to 6593 pounds
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Two- or four-wheel driveReference
Steeringmechanical/power assistReference
Drum brakesReference
Engine
Schluter 3.4L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine43.3 kWReference
Schluter SDM 108 W 3Reference
dieselReference
3-cylinderReference
Displacement3.4 LReference
Bore/Stroke110 x 125 mmReference
Power43.3 kWReference
Rated RPM2100Reference
Torque235.0 NmReference
Torque RPM1300Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear lift1500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase199 cmReference
Weight5931 to 6593 poundsReference
Front tire6.00-19Reference
Rear tire12.4-32Reference
Ag front6.00-19 (2WD)Reference
Ag front7.2-24 (4WD)Reference
Ag rear12.4-32Reference
Length351 cmReference
Height234 cmReference
Weight2690 kgReference
Weight2990 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
