Tractor · 1971Unverified

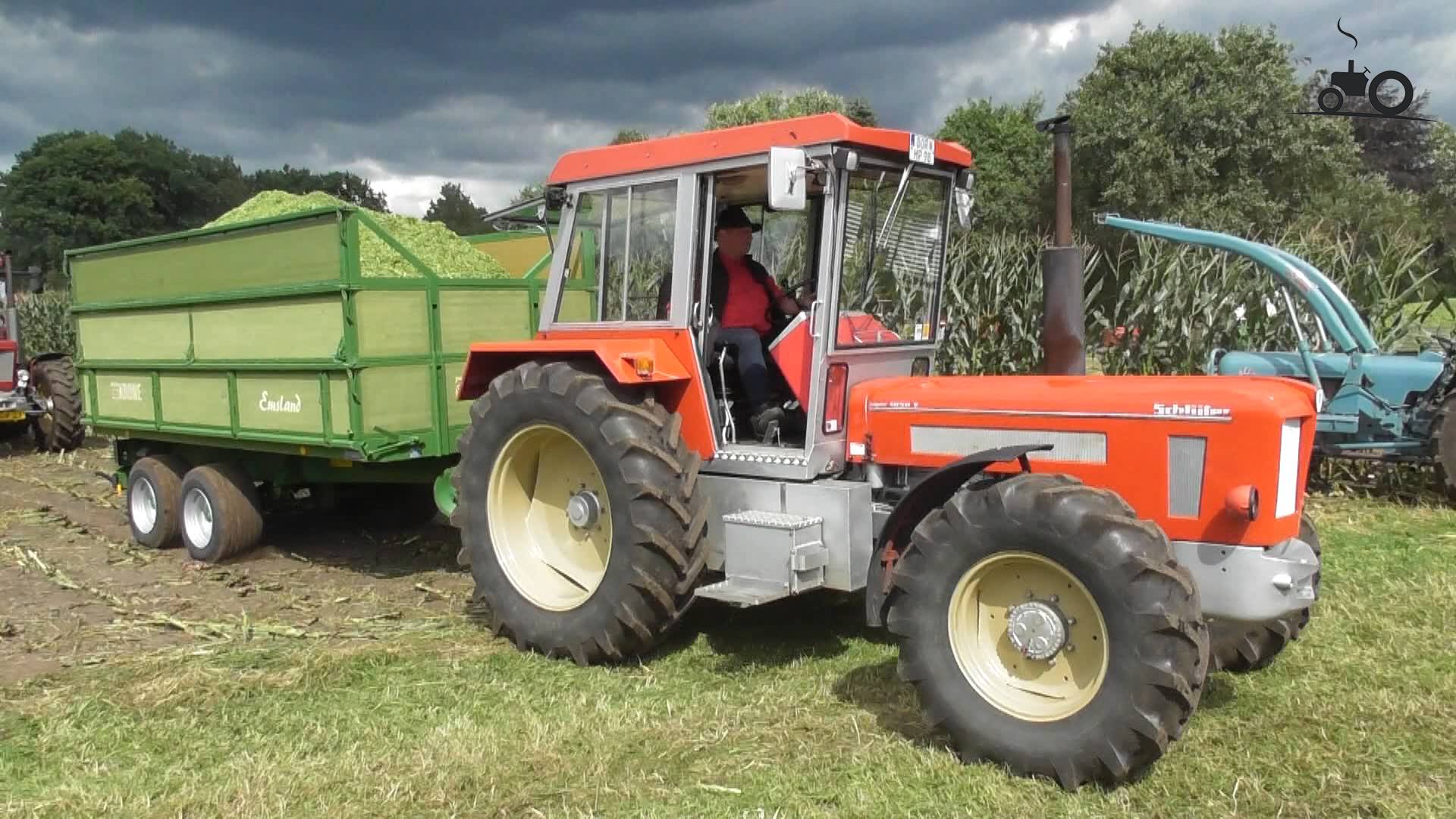

Schluter Compact 750
Schluter Compact 750 — Model year 1971-19741974-19781978-1982 · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Weight
7342 to 8291 pounds
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Two- or four-wheel driveReference
Steeringmechanical/power assistReference
Drum brakesReference
Engine
Schluter 3.6L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine50.7 kWReference
Schluter SDM 110 W 3Reference
dieselReference
3-cylinderReference
Displacement3.6 LReference
Bore/Stroke110 x 125 mmReference
Power50.7 kWReference
Rated RPM2100Reference
Torque250.0 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Rear lift3200 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase234 cmReference
Weight7342 to 8291 poundsReference
Front tire6.50-20Reference
Rear tire13.6-36Reference
Ag front6.50-20 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear13.6-36Reference
Length393 cmReference
Height246 cmReference
Weight3330 kgReference
Weight3760 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
