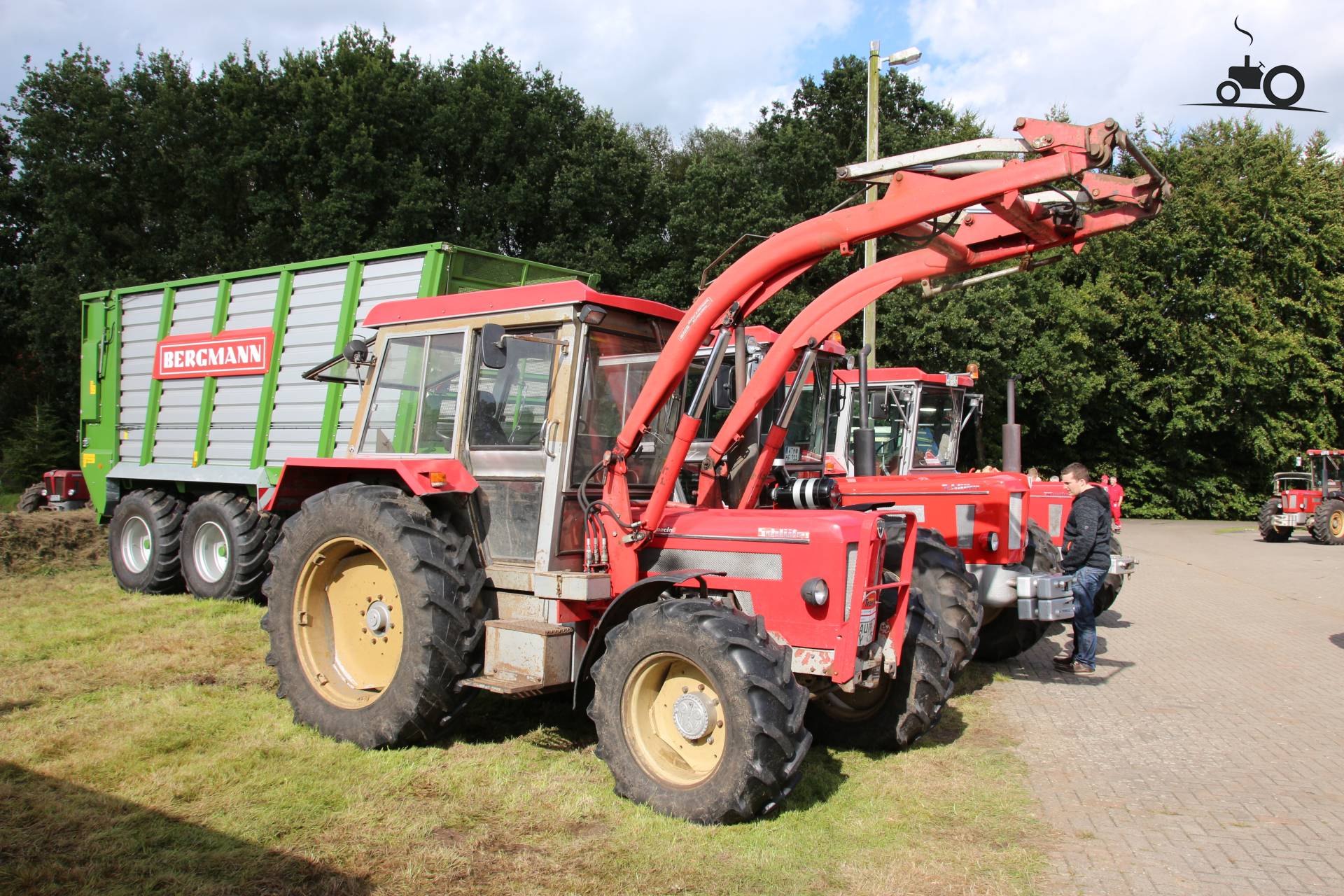

The Schluter Compact 850 Special is a tractor with an engine rating of 90 hp, positioning it centrally within its class in terms of power. Manufactured in 1982, it features a 4-cylinder diesel engine and is equipped with four-wheel drive and a 12-speed gearbox. The tractor's listed weight is 4300 kg, and it is designed for use in areas of approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
4300 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
90 hp
Recorded weight
4300 kg
Transmissions
12-speed synchromesh
Production years
1982-1982
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Power steeringReference
Hydraulic drum brakesReference
Super Silent cab standard.Reference
Engine
Schluter 4.9L 4-cyl dieselReference
Fuel tank155.9 LReference
Engine67.1 kWReference
Schluter SDM 112 W 4Reference
dieselReference
4-cylinderReference
Displacement4.9 LReference
Bore/Stroke112 x 125 mmReference
Power67.1 kWReference
Rated RPM1800Reference
Torque373.0 NmReference
Torque RPM1300Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow37.9 lpmReference
Rear lift3600 kgReference
Rear lift4500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase234 cmReference
Weight4300 kgReference
Front tire14.9R24Reference
Rear tire18.4R38Reference
Ag front14.9R24Reference
Ag rear18.4R38Reference
Length411 cmReference
Height277 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
