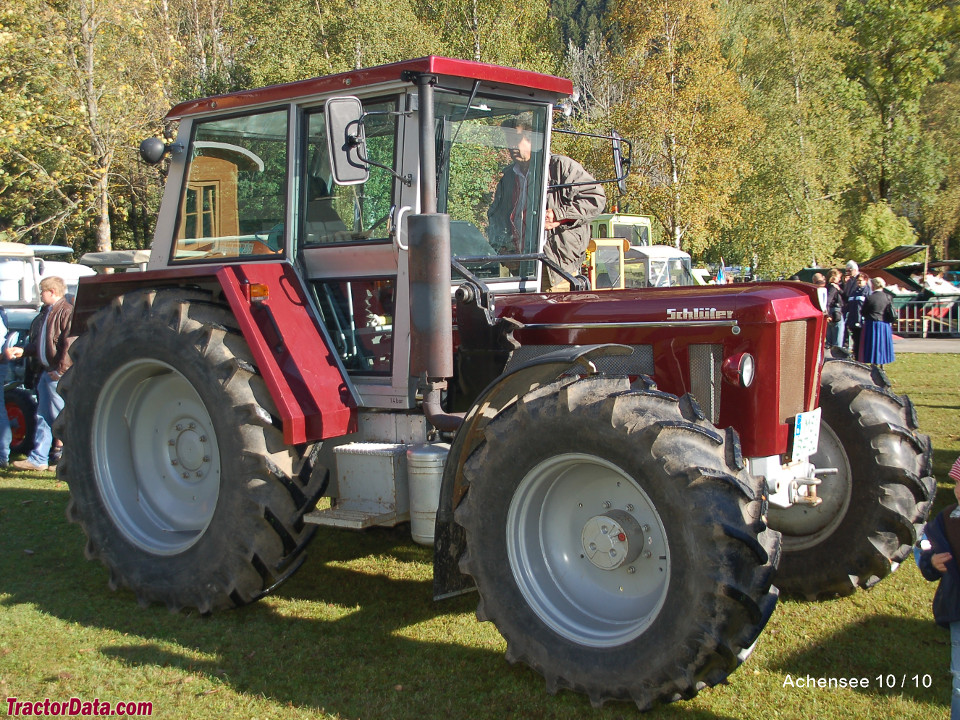

The Schluter Compact 950 V 6 is a tractor model with an approximate power rating of 90 hp, positioning it as a mid-range model in its class. It was manufactured from 1982 to 1990. The tractor features a 6-cylinder diesel liquid-cooled engine paired with a hydrostatic transmission and four-wheel drive. Its operating weight is listed as 4400 kg, making it suitable for operations ranging from 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
4400 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
90 hp
Recorded weight
4400 kg
Transmissions
12-speed
Production years
1982-1990
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Drum brakesReference
Engine
MAN 5.7L 6-cyl dieselReference
Fuel tank160.1 LReference
Engine67.1 kWReference
MAN D 0226 ME 51Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.7 LReference
Bore/Stroke102 x 116 mmReference
Power67.1 kWReference
Rated RPM2200Reference
Torque336.0 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 5 reverseReference
PTO & Hydraulics
Total flow37.9 lpmReference
Total flow54.9 lpmReference
Rear lift3600 kgReference
Rear lift4500 kgReference
Rear lift3900 kgReference
Rear lift5200 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase240 cmReference
Weight4400 kgReference
Front tire12.4R28Reference
Rear tire18.4R38Reference
Ag front12.4R28Reference
Ag rear18.4R38Reference
Length417 cmReference
Height271 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
