Tractor · 1991Unverified

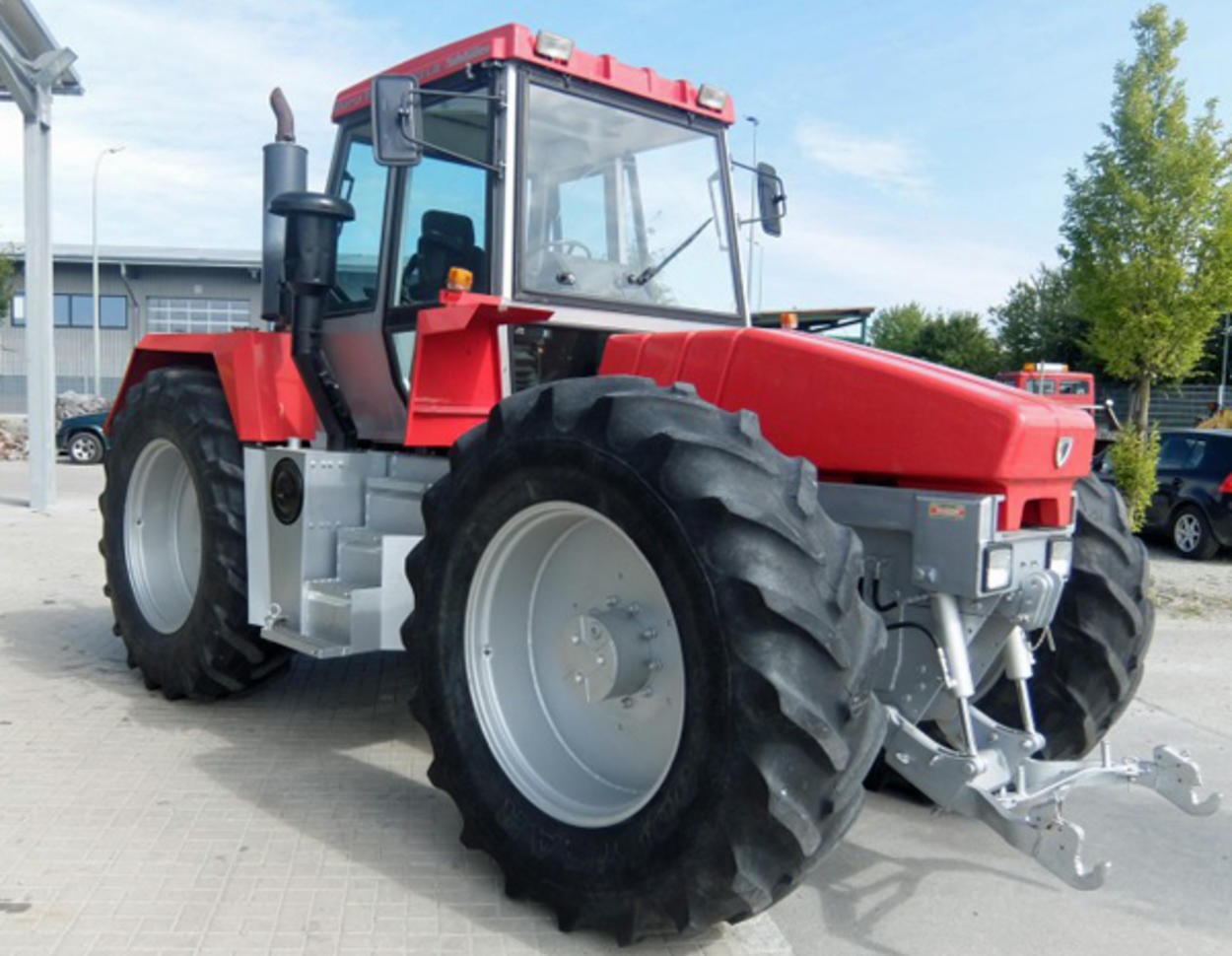

Schluter Euro Trac 1300 LS
Schluter Euro Trac 1300 LS · 130 hp. Reference specifications; pending source verification.
The Schluter Euro Trac 1300 LS is a tractor model with a rated output of 130 hp, which positions it among the higher-powered machines in its class. It was manufactured between 1991 and 1993. The tractor features a 6-cylinder turbocharged diesel engine and four-wheel drive, which is coupled to a hydrostatic transmission. It is suitable for tasks covering approximately 200-800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
130 hp
Transmissions
24-speed
Production years
1991-1993
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
MAN 6.9L 6-cyl dieselReference
Fuel tank280.1 LReference
Engine96.9 kWReference
MAN D 0826 TUE 501Reference
turbocharged dieselReference
6-cylinderReference
Displacement6.9 LReference
Bore/Stroke112 x 125 mmReference
Power96.9 kWReference
Rated RPM2200Reference
Torque540.1 NmReference
Torque RPM1500Reference
Transmission
24-speedReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Total flow54.9 lpmReference
Rear lift8401 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase310 cmReference
Front tire18.4R38Reference
Rear tire18.4R38Reference
Ag front18.4R38Reference
Ag rear18.4R38Reference
Length533 cmReference
Height310 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
