Tractor · 1991Unverified

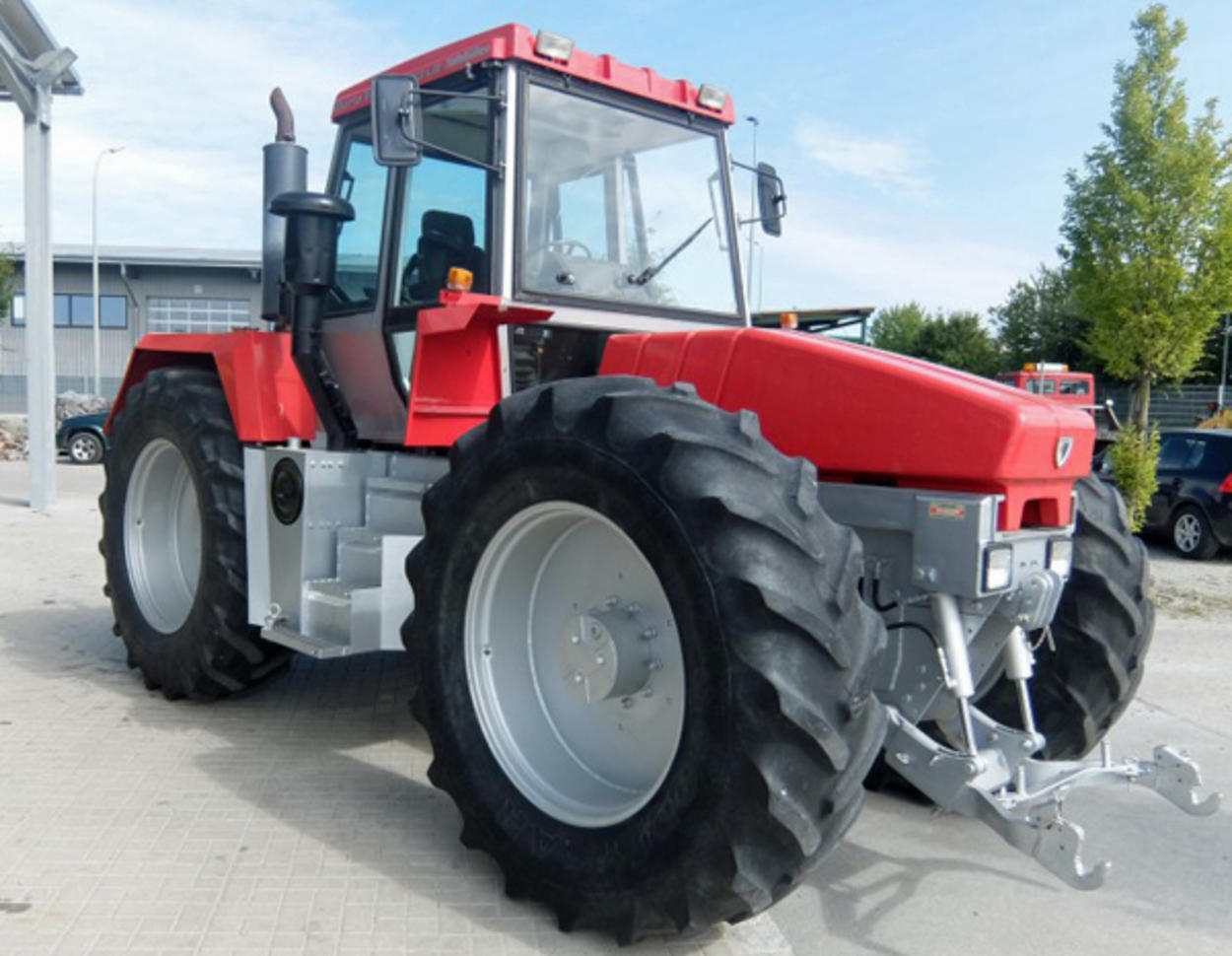

Schluter Euro Trac 1600 LS
Schluter Euro Trac 1600 LS · 160 hp. Reference specifications; pending source verification.
The Schluter Euro Trac 1600 LS is a tractor with a rated power of 160 hp, placing it at the powerful end of its class. It was produced from 1991 to 1993. The tractor features a 6-cylinder turbocharged intercooled diesel engine, coupled with four-wheel drive and a hydrostatic transmission. It is suited to operations of 600–1,500 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
160 hp
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
160 hp
Transmissions
24-speed
Production years
1991-1993
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
MAN 6.9L 6-cyl dieselReference
Fuel tank280.1 LReference
Engine119.3 kWReference
MAN D 0826 LUE 503Reference
intercooled turbocharged dieselReference
6-cylinderReference
Displacement6.9 LReference
Bore/Stroke112 x 125 mmReference
Power119.3 kWReference
Rated RPM2200Reference
Torque667.2 NmReference
Torque RPM1500Reference
Transmission
24-speedReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Total flow54.9 lpmReference
Rear lift8401 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase310 cmReference
Front tire18.4R38Reference
Rear tire18.4R38Reference
Ag front18.4R38Reference
Ag rear18.4R38Reference
Length535 cmReference
Height310 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
