Tractor · 1993Unverified

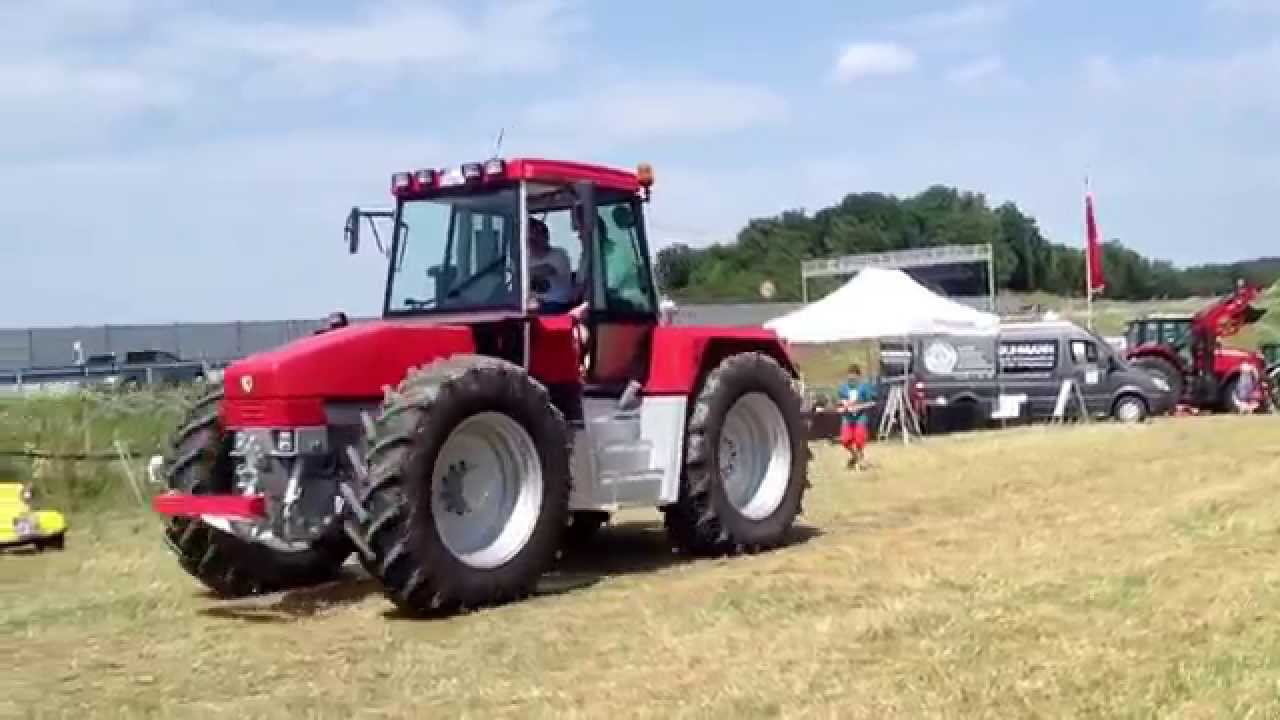

Schluter Euro Trac 1700 LS
Schluter Euro Trac 1700 LS · 170 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
170 hp
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
MAN 6.9L 6-cyl dieselReference
Fuel tank280.1 LReference
Engine126.8 kWReference
MAN D 0826 LUE 503Reference
intercooled turbocharged dieselReference
6-cylinderReference
Displacement6.9 LReference
Bore/Stroke112 x 125 mmReference
Power126.8 kWReference
Rated RPM2200Reference
Torque680.2 NmReference
Torque RPM1400Reference
Transmission
24-speedReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Total flow54.9 lpmReference
Rear lift8401 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase310 cmReference
Front tire18.4R38Reference
Rear tire18.4R38Reference
Ag front18.4R38Reference
Ag rear18.4R38Reference
Length535 cmReference
Height310 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
