Tractor · 1991Unverified

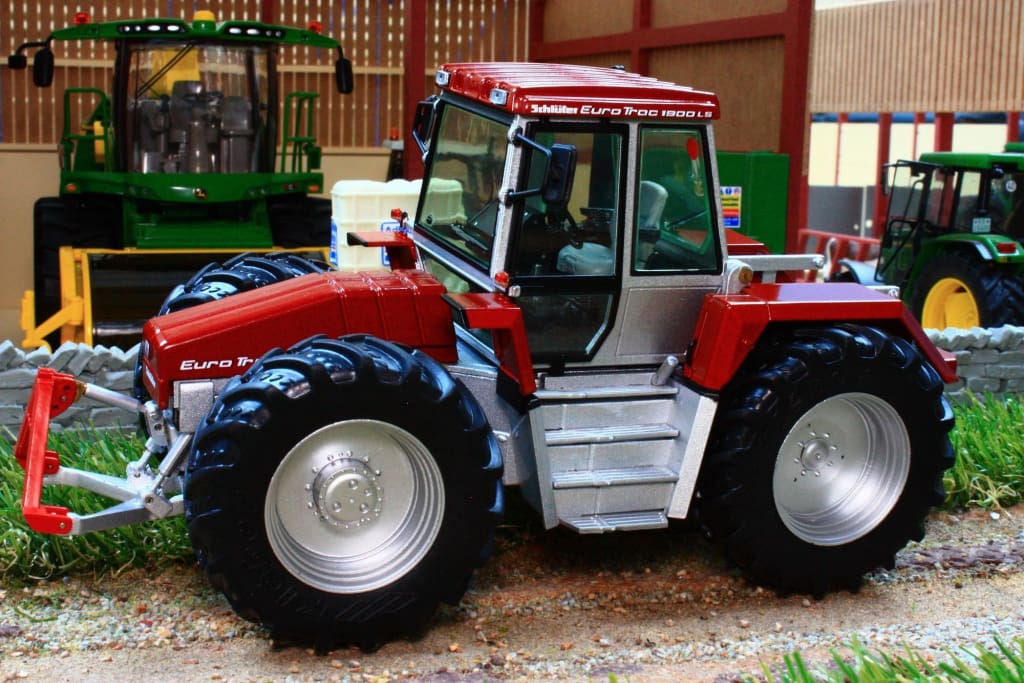

Schluter Euro Trac 1900 LS
Schluter Euro Trac 1900 LS · 190 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
190 hp
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
MAN 6.9L 6-cyl dieselReference
Fuel tank280.1 LReference
Engine141.7 kWReference
MAN D 0826 LUE 501Reference
intercooled turbocharged dieselReference
6-cylinderReference
Displacement6.9 LReference
Bore/Stroke112 x 125 mmReference
Power141.7 kWReference
Rated RPM2200Reference
Torque785.1 NmReference
Torque RPM1500Reference
Transmission
24-speedReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Total flow54.9 lpmReference
Rear lift8401 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase316 cmReference
Front tire20.8R38Reference
Rear tire20.8R38Reference
Ag front20.8R38Reference
Ag rear20.8R38Reference
Length535 cmReference
Height310 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
