Tractor · 1976Unverified

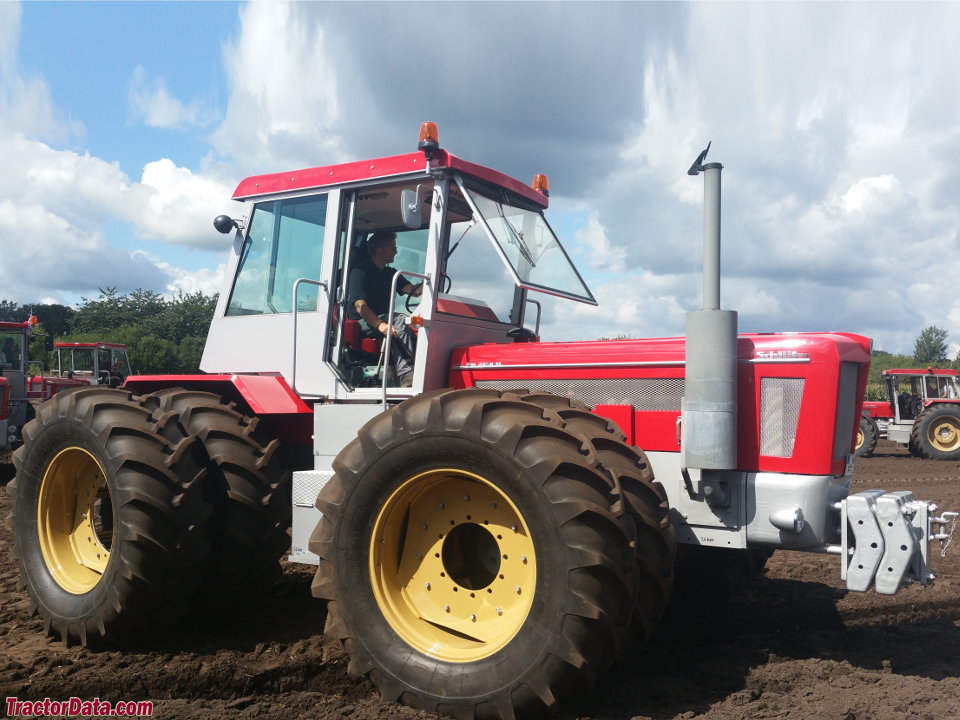

Schluter Profi-Trac 2500 VL
Schluter Profi-Trac 2500 VL — Profi-Trac Series · 240 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
240 hp
Weight
11002 kg
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Power four-wheel steeringReference
Dry disc brakesReference
Cab standard.Reference
Engine
MAN 11.4L 6-cyl dieselReference
Fuel tank445.1 LReference
Engine179.0 kWReference
MAN D 2566 MEReference
dieselReference
6-cylinderReference
Displacement11.4 LReference
Bore/Stroke125 x 155 mmReference
Power179.0 kWReference
Rated RPM2200Reference
Torque843.2 NmReference
Torque RPM1500Reference
Transmission
18-speedReference
Gears18 forward and 4 reverseReference
PTO & Hydraulics
Total flow40.1 lpmReference
Total flow45.0 lpmReference
Rear lift5801 kgReference
Rear lift7301 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase284 cmReference
Weight11002 kgReference
Front tire18.4-38Reference
Rear tire18.4-38Reference
Ag front18.4-38Reference
Ag rear18.4-38Reference
Length614 cmReference
Height345 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
