Tractor · 1975Unverified

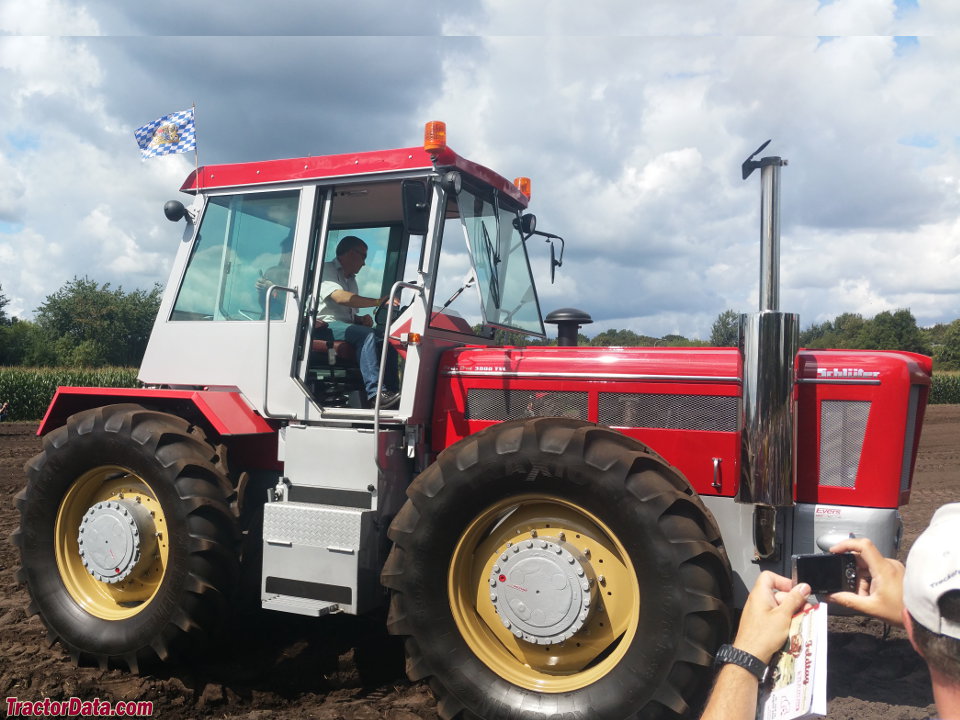

Schluter Profi-Trac 3000 TVL
Schluter Profi-Trac 3000 TVL — Profi-Trac Series · 300 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
300 hp
Weight
11501 kg
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Power four-wheel steeringReference
Dry disc brakesReference
standardReference
Engine
MAN 11.0L 6-cyl dieselReference
Fuel tank445.1 LReference
Engine223.7 kWReference
MAN D 2556 MTEReference
turbocharged dieselReference
6-cylinderReference
Displacement11.0 LReference
Bore/Stroke125 x 150 mmReference
Power223.7 kWReference
Rated RPM2200Reference
Torque RPM1500Reference
Transmission
18-speedReference
Gears18 forward and 4 reverseReference
PTO & Hydraulics
Total flow40.1 lpmReference
Rear lift5801 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase289 cmReference
Weight11501 kgReference
Front tire20.8-38Reference
Rear tire20.8-38Reference
Ag front20.8-38Reference
Ag rear20.8-38Reference
Length614 cmReference
Height345 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
