Tractor · 1978Unverified

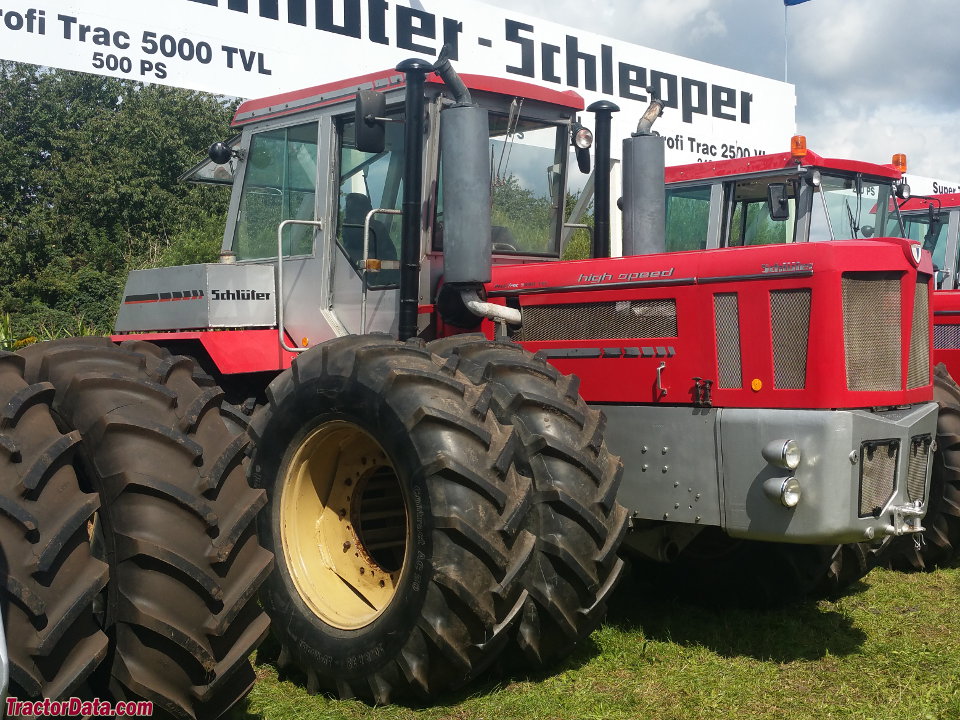

Schluter Profi-Trac 5000 TVL

Name: Schluter Profi-Trac 5000 TVL
Brand: Schluter

Schluter Profi-Trac 5000 TVL — Profi-Trac Series · 500 hp. Reference specifications; pending source verification.

The Schluter Profi-Trac 5000 TVL is a tractor characterised by its high power output of 500 hp. Produced in 1978, this model features a 12-cylinder turbocharged diesel engine, coupled with a four-wheel drive system and an 8-speed gearbox. The listed weight of the Profi-Trac 5000 TVL is 18003 kg. It is designed for large-scale operations, covering areas of approximately 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

500 hp

Weight

18003 kg

Catalogue coverage

Variants represented

Richest spec table

30 rows

Recorded power

500 hp

Recorded weight

18003 kg

Transmissions

8-speed

Production years

1978-1978

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSchluterReference

Four-wheel Drive (4WD) tractorReference

Drive4x4 4WDReference

Power four-wheel steeringReference

Dry disc brakesReference

standardReference

Engine

MAN 20.9L 12-cyl dieselReference

Fuel tank920.1 LReference

Engine372.9 kWReference

MAN D 2542 MTEReference

turbocharged dieselReference

12-cylinderReference

Displacement20.9 LReference

Bore/Stroke125 x 142 mmReference

Power372.9 kWReference

Rated RPM2200Reference

Torque1756.3 NmReference

Torque RPM1500Reference

Transmission

8-speedReference

Gears8 forward and 1 reverseReference

PTO & Hydraulics

Rear lift7301 kgReference

Rear PTO Type-Reference

Dimensions

Wheelbase289 cmReference

Weight18003 kgReference

Front tire20.8-38Reference

Rear tire20.8-38Reference

Ag front20.8-38Reference

Ag rear20.8-38Reference

Length644 cmReference

Height345 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
