Tractor · 1963Unverified

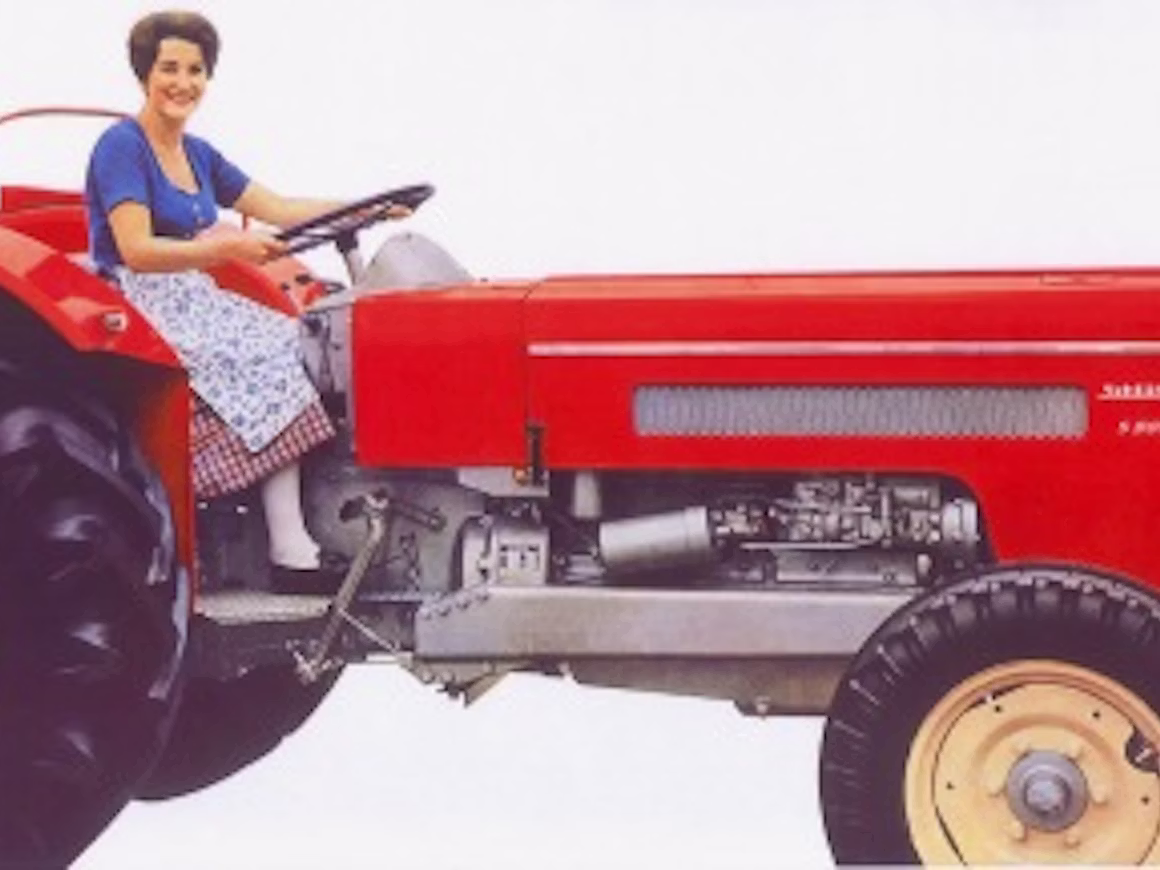

Schluter S350
Schluter S350 · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
4057 to 4410 pounds
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
SteeringmechanicalReference
Drum brakesReference
Engine
2.9L 3-cylReference
Engine25.4 kWReference
SD 100 W 3Reference
3-cylinderReference
Displacement2.9 LReference
Bore/Stroke100 x 125 mmReference
Power25.4 kWReference
Rated RPM1800Reference
Torque147.0 NmReference
Torque RPM1200Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear lift1000 kgReference
Rear lift1350 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase199 cmReference
Weight4057 to 4410 poundsReference
Front tire5.50-16Reference
Rear tire11.2-28Reference
Ag front5.50-16 (2WD)Reference
Ag front7.50-18 (4WD)Reference
Ag rear11.2-28 (2WD)Reference
Ag rear9.5-32 (4WD)Reference
Length343 cmReference
Height154 cmReference
Weight1840 kgReference
Weight2000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
