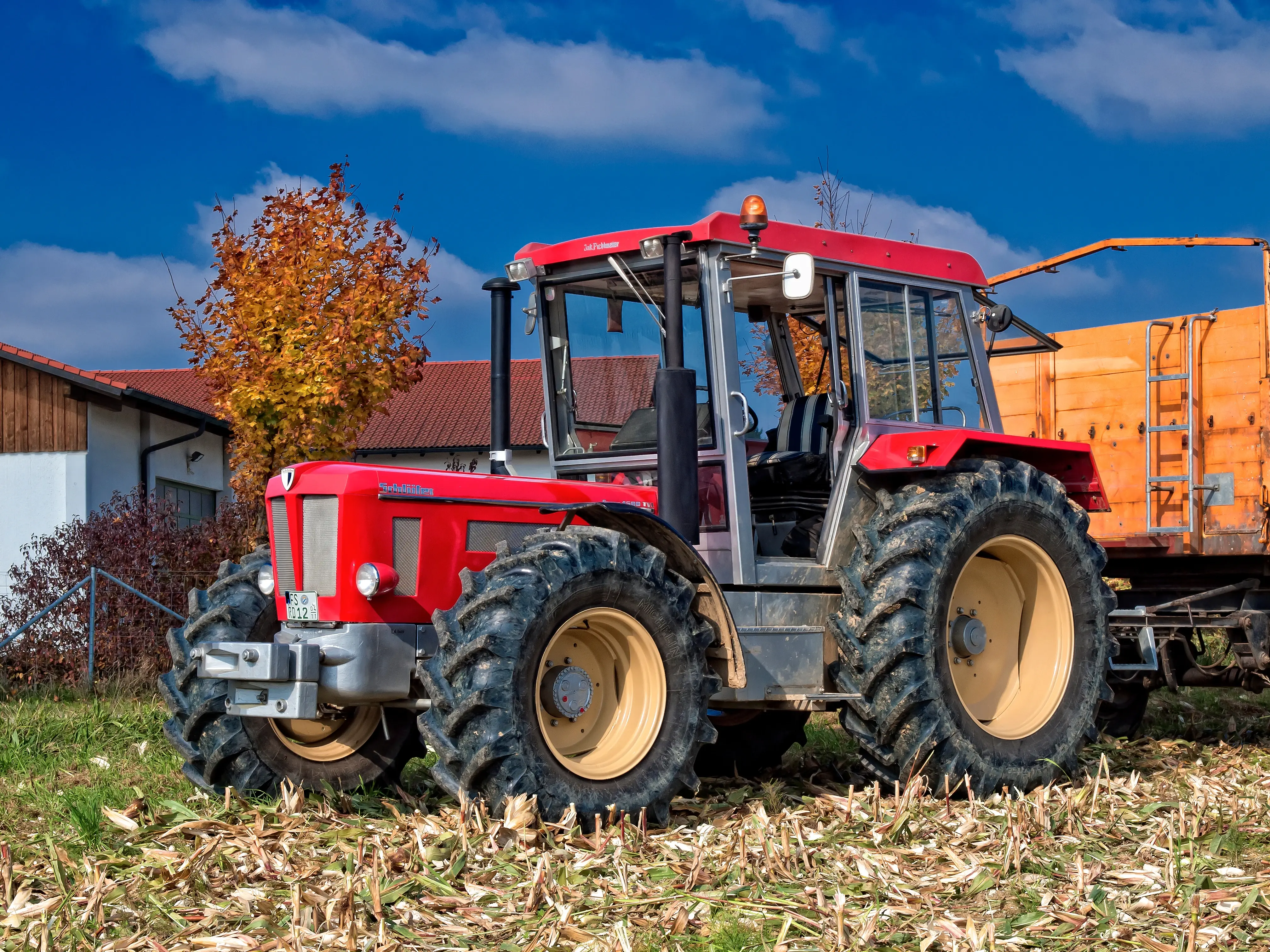

The Schluter S600 is a tractor with a rated power of 56 hp, categorising it as a lighter model within its class. Manufactured from 1963 to 1966, this model features a 4-cylinder engine and mechanical front-wheel drive with an 8-speed gearbox. Its operating weight is listed as between 6174 and 6615 pounds. It is capable of operating on up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Weight
6174 to 6615 pounds
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
56 hp
Recorded weight
2800 kg
Transmissions
8-speed
Production years
1963-1966
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
SteeringmechanicalReference
Drum brakesReference
Engine
4.3L 4-cylReference
Fuel tank79.9 LReference
Engine41.8 kWReference
SD 105 W 4Reference
4-cylinderReference
Displacement4.3 LReference
Bore/Stroke105 x 125 mmReference
Power41.8 kWReference
Rated RPM1800Reference
Torque235.0 NmReference
Torque RPM1400Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear lift1500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase229 cmReference
Weight6174 to 6615 poundsReference
Front tire6.50-20Reference
Rear tire12.4-36Reference
Ag front6.50-20 (2WD)Reference
Ag front8.3-24Reference
Ag rear12.4-36 (2WD)Reference
Ag rear14.9-30 (4WD)Reference
Length409 cmReference
Height164 cmReference
Weight2800 kgReference
Weight3000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
