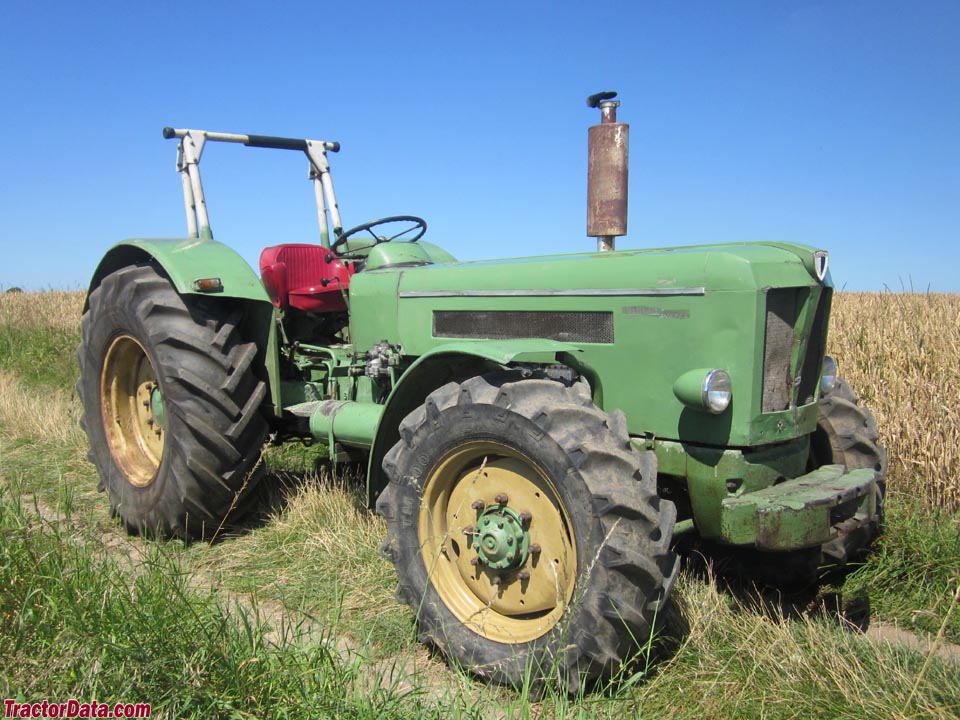

The Schluter S900 is a tractor model with a rated power output of 80 hp, a mid-range figure for its class. It was manufactured between 1964 and 1966. The tractor features a 6-cylinder engine and mechanical front-wheel drive, paired with an 8-speed gearbox. Its operating weight is listed as 8379 to 9151 pounds.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
8379 to 9151 pounds
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
80 hp
Recorded weight
3800 kg
Transmissions
8-speed
Production years
1964-1966
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
SteeringmechanicalReference
Drum brakesReference
Engine
6.5L 6-cylReference
Fuel tank99.9 LReference
Engine59.7 kWReference
SD 105 W 6Reference
6-cylinderReference
Displacement6.5 LReference
Bore/Stroke105 x 125 mmReference
Power59.7 kWReference
Rated RPM1800Reference
Torque304.0 NmReference
Torque RPM1400Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear lift1500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase262 cmReference
Weight8379 to 9151 poundsReference
Front tire6.50-20Reference
Rear tire13.6-36Reference
Ag front6.50-20 (2WD)Reference
Ag front10.5-18 (4WD)Reference
Ag rear13.6-36 (2WD)Reference
Ag rear16.9-30 (4WD)Reference
Length440 cmReference
Height193 cmReference
Weight3800 kgReference
Weight4150 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
