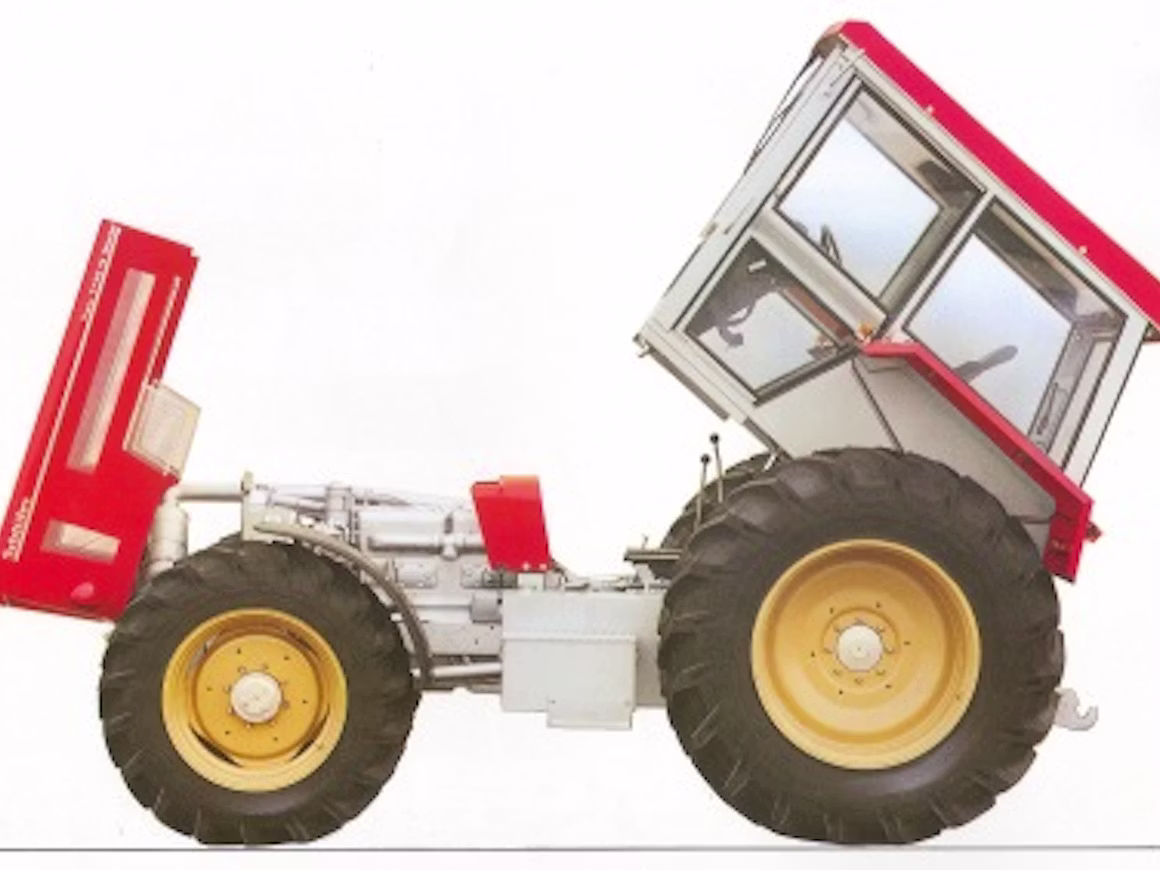

The Schluter Super 1050 is a tractor featuring 100 hp of rated output, situated centrally within its class in terms of power. Production of this model spanned 1974 to 1976. It is equipped with a 6-cylinder engine and a 12-speed gearbox, transmitting power through four-wheel drive. The listed weight of the tractor is 4585 kg, suitable for use on areas of around 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
4585 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
100 hp
Recorded weight
4585 kg
Transmissions
12-speed
Production years
1974-1976
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringpower assistReference
Drum brakesReference
Engine
6.9L 6-cylReference
Fuel tank124.9 LReference
Engine74.6 kWReference
SDM 108 W 6Reference
6-cylinderReference
Displacement6.9 LReference
Bore/Stroke108 x 125 mmReference
Power74.6 kWReference
Rated RPM1800Reference
Torque432.0 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow26.1 lpmReference
Rear lift3200 kgReference
Rear lift4500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase272 cmReference
Wheelbase263 cmReference
Weight4585 kgReference
Front tire11.2-24Reference
Rear tire16.9-34Reference
Ag front11.2-24Reference
Ag rear16.9-34Reference
Length458 cmReference
Height250 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
