Tractor · 1982Unverified

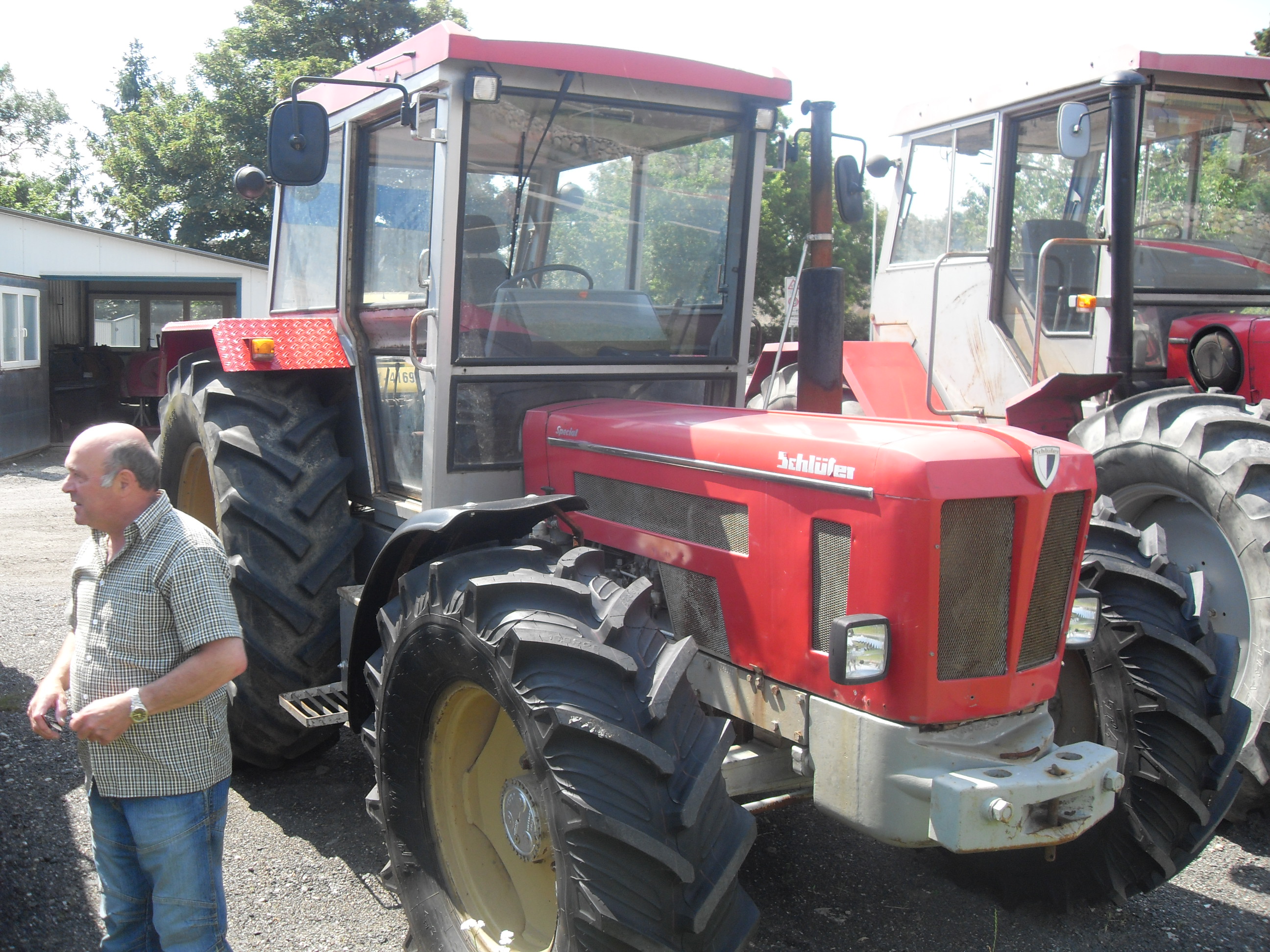

Schluter Super 1050 V Special
Schluter Super 1050 V Special · 110 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
110 hp
Weight
5300 kg
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
7.1L 6-cylReference
Fuel tank310.0 LReference
Engine82.0 kWReference
SDM 110 W 6Reference
6-cylinderReference
Displacement7.1 LReference
Bore/Stroke110 x 125 mmReference
Power82.0 kWReference
Rated RPM1800Reference
Torque452.1 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow40.1 lpmReference
Total flow48.8 lpmReference
Rear lift3900 kgReference
Rear lift6201 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase272 cmReference
Weight5300 kgReference
Front tire12.4R28Reference
Rear tire16.9R38Reference
Ag front12.4R28Reference
Ag rear16.9R38Reference
Length467 cmReference
Height288 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
