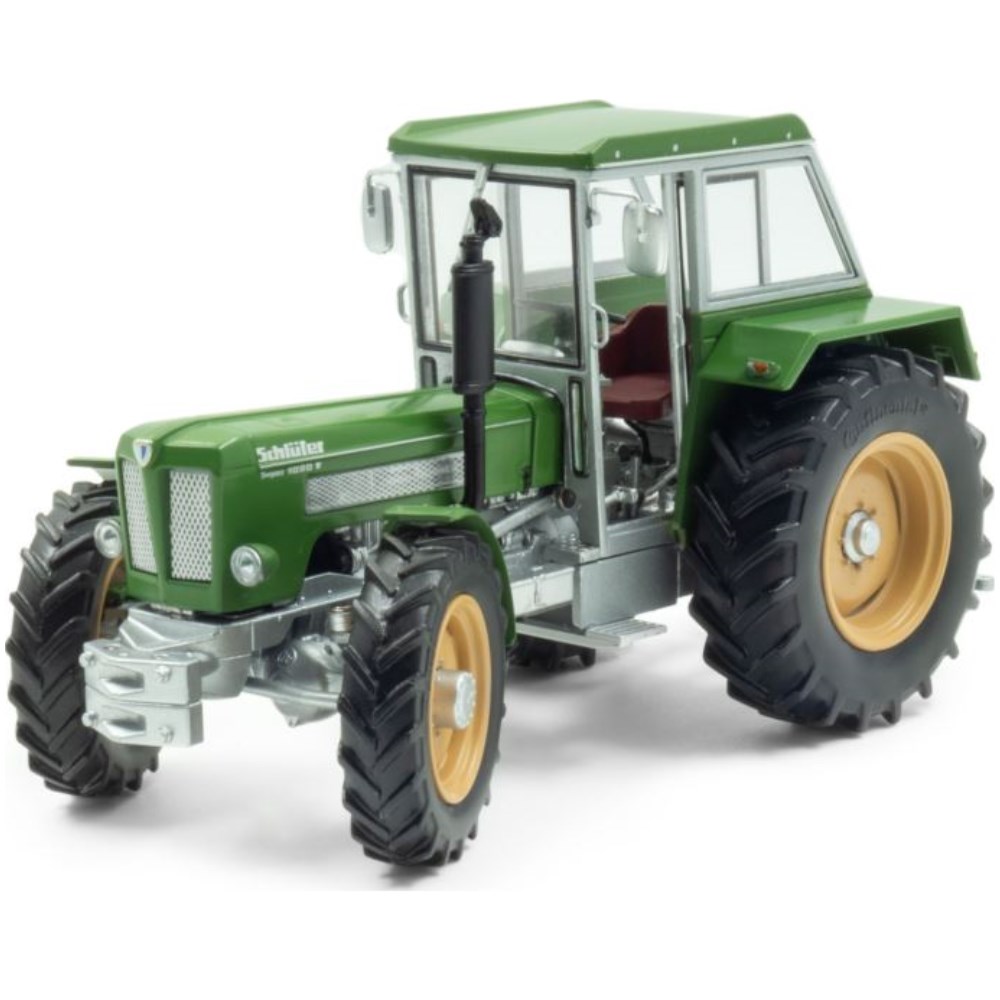

The Schluter Super 1050V is a tractor model with a rated power of 105 hp, positioned within the mid-range of its class. It was manufactured from 1978 to 1982. The tractor features a 6-cylinder engine and a hydrostatic transmission in conjunction with four-wheel drive. Its operating weight is listed as 4900 kg, making it suitable for operations covering 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Weight
4900 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
105 hp
Recorded weight
4900 kg
Transmissions
12-speed
Production years
1978-1982
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
6.9L 6-cylReference
Fuel tank124.9 LReference
Fuel tank260.0 LReference
Engine78.3 kWReference
SDM 108 W 6Reference
6-cylinderReference
Displacement6.9 LReference
Bore/Stroke108 x 125 mmReference
Power78.3 kWReference
Rated RPM1800Reference
Torque432.0 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow37.9 lpmReference
Rear lift3600 kgReference
Rear lift4500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase272 cmReference
Weight4900 kgReference
Front tire12.4-28Reference
Rear tire16.9-38Reference
Ag front12.4-28Reference
Ag rear16.9-38Reference
Length458 cmReference
Height280 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
