Tractor · 1993Unverified

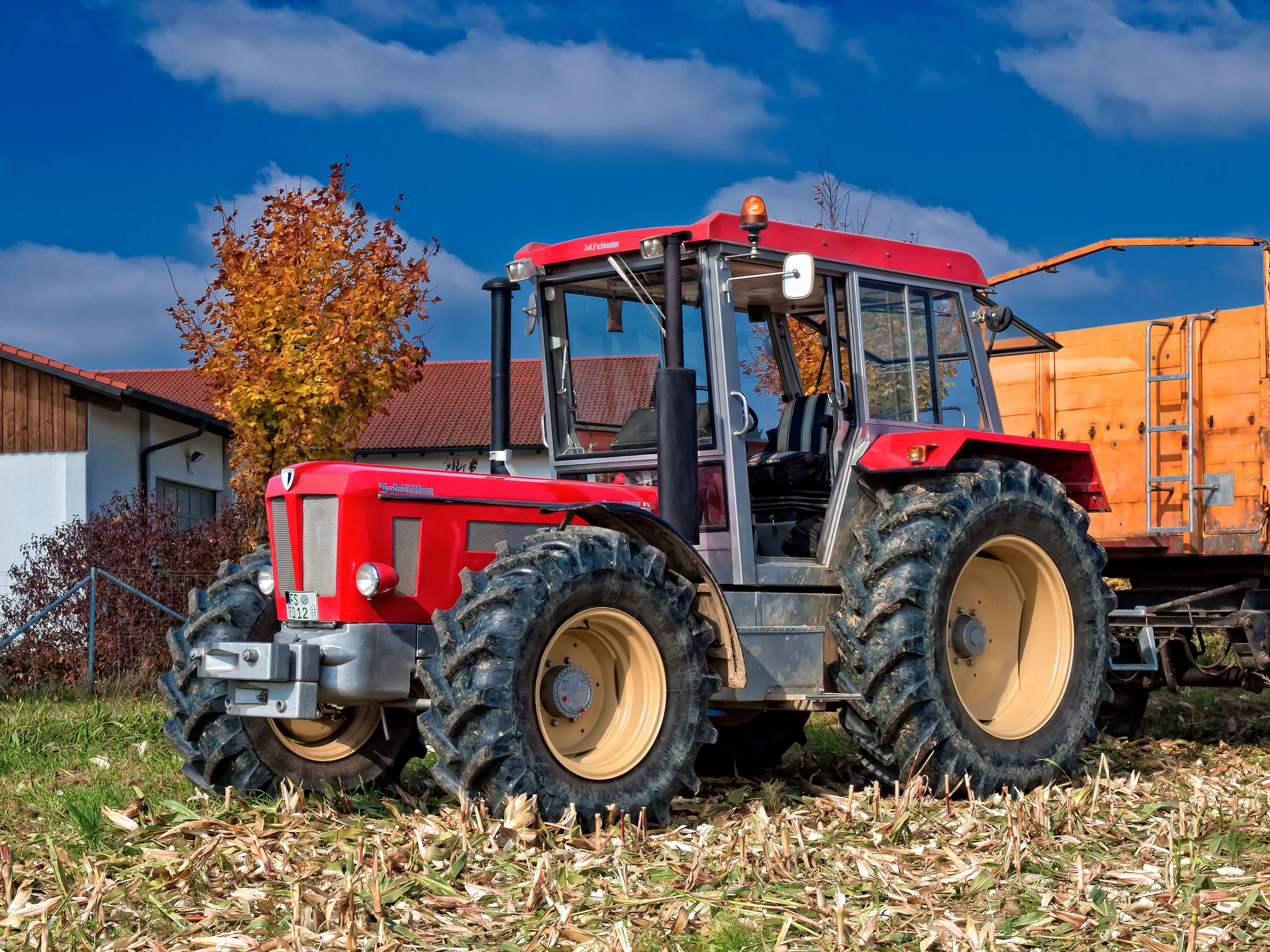

Schluter Super 1400LS
Schluter Super 1400LS · 135 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
6100 kg
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
6.9L 6-cylReference
Fuel tank310.0 LReference
Engine100.7 kWReference
D 0826 TE 501Reference
turboReference
6-cylinderReference
Displacement6.9 LReference
Bore/Stroke108 x 125 mmReference
Power100.7 kWReference
Rated RPM2200Reference
Torque550.1 NmReference
Torque RPM1300Reference
Transmission
24-speedReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Rear lift6201 kgReference
Rear lift8401 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase280 cmReference
Weight6100 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length475 cmReference
Height288 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
