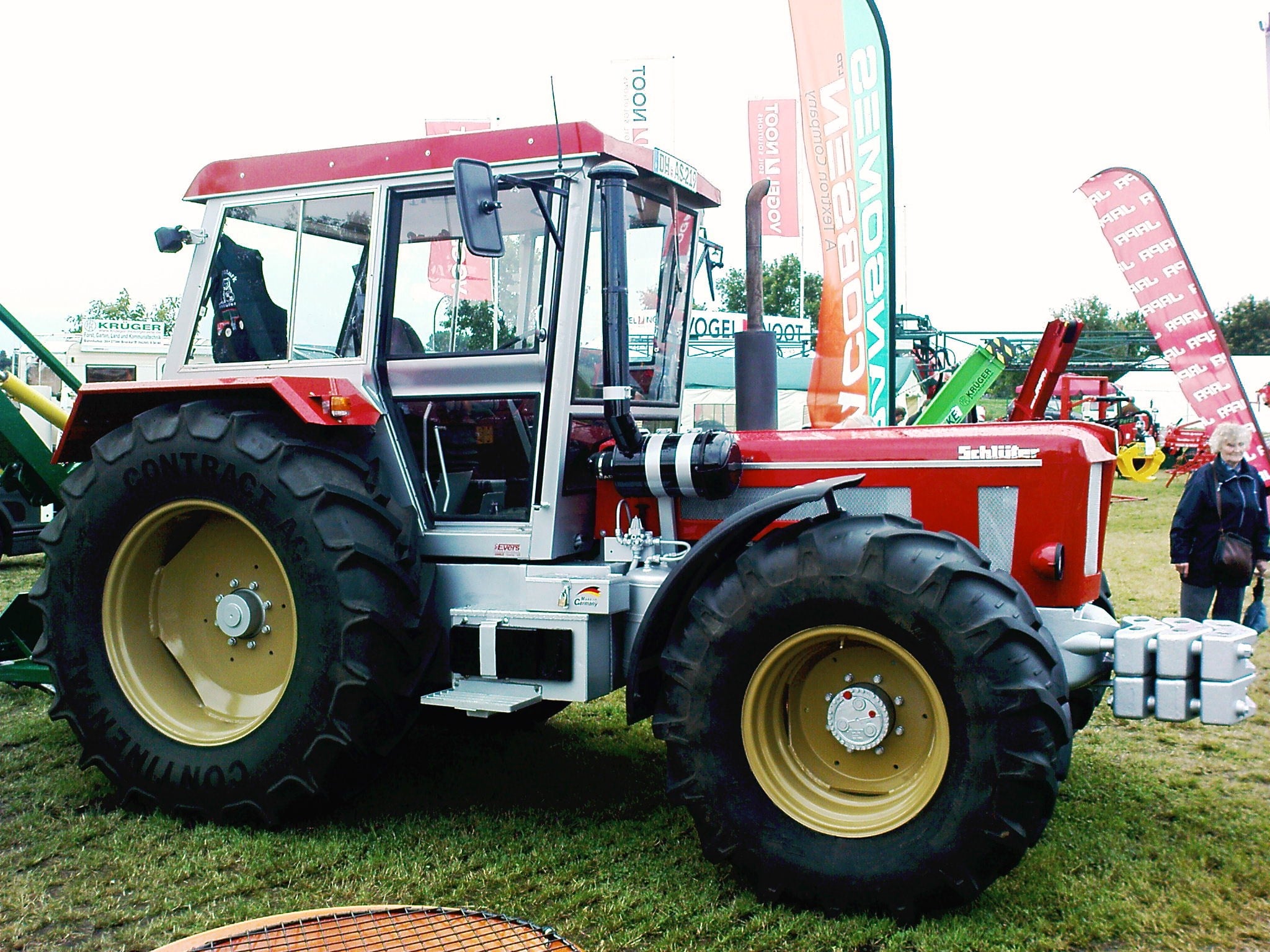

The Schluter Super 1500TV is a tractor model with a rated power output of 135 hp, placing it at the more powerful end of its class. It was manufactured from 1970 to 1973. The tractor features a 6-cylinder turbocharged engine paired with four-wheel drive and a 12-speed gearbox. It has a listed operating weight of 5375 kg, and is suitable for use on operations ranging from 200 to 800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
135 hp
Weight
5375 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
135 hp
Recorded weight
5375 kg
Transmissions
12-speed
Production years
1970-1973
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringpower assistReference
Drum brakesReference
Engine
7.1L 6-cylReference
Fuel tank260.0 LReference
Engine100.7 kWReference
SDMT 110 W 6Reference
turboReference
6-cylinderReference
Displacement7.1 LReference
Bore/Stroke110 x 125 mmReference
Power100.7 kWReference
Rated RPM1800Reference
Torque579.1 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow37.9 lpmReference
Rear lift5601 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase263 cmReference
Weight5375 kgReference
Front tire11.2-28Reference
Rear tire18.4-38Reference
Ag front11.2-28Reference
Ag rear18.4-38Reference
Length440 cmReference
Height257 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
