Tractor · 1972Unverified

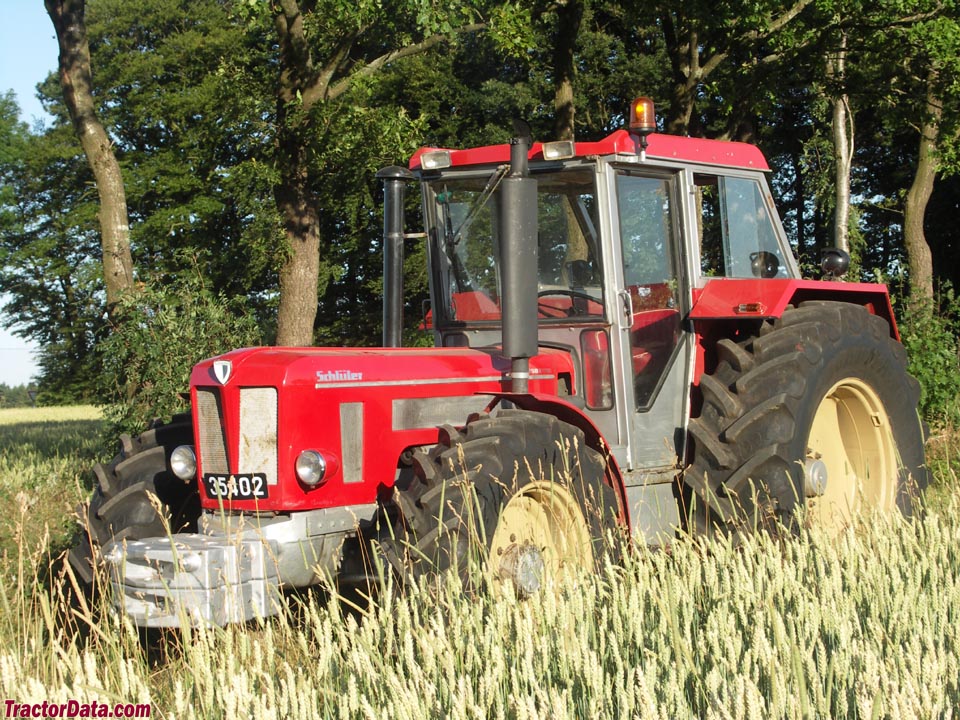

Schluter Super 1500TVL
Schluter Super 1500TVL — Model year 1972-19741974-19761976-19841984-1992 · 145 hp. Reference specifications; pending source verification.
The Schluter Super 1500TVL is a tractor with a rated power of 145 hp, placing it towards the upper end of its class. The Super 1500TVL was manufactured from 1972 to 1992. It features a 6-cylinder turbocharged engine, paired with four-wheel drive and a 12-speed gearbox. The tractor has an operating weight of 5475 kg and is suited for operations covering 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Weight
5475 kg
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
145 hp
Recorded weight
5475 kg
Transmissions
12-speed
Production years
1972-1992
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringpower assistReference
Drum brakesReference
Engine
7.1L 6-cylReference
Fuel tank260.0 LReference
Engine108.1 kWReference
SDMT 110 W 6Reference
turboReference
6-cylinderReference
Displacement7.1 LReference
Bore/Stroke110 x 125 mmReference
Power108.1 kWReference
Rated RPM2000Reference
Torque589.0 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Rear lift5601 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase263 cmReference
Weight5475 kgReference
Front tire12.4-28Reference
Rear tire18.4-38Reference
Ag front12.4-28Reference
Ag rear18.4-38Reference
Length453 cmReference
Height257 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
