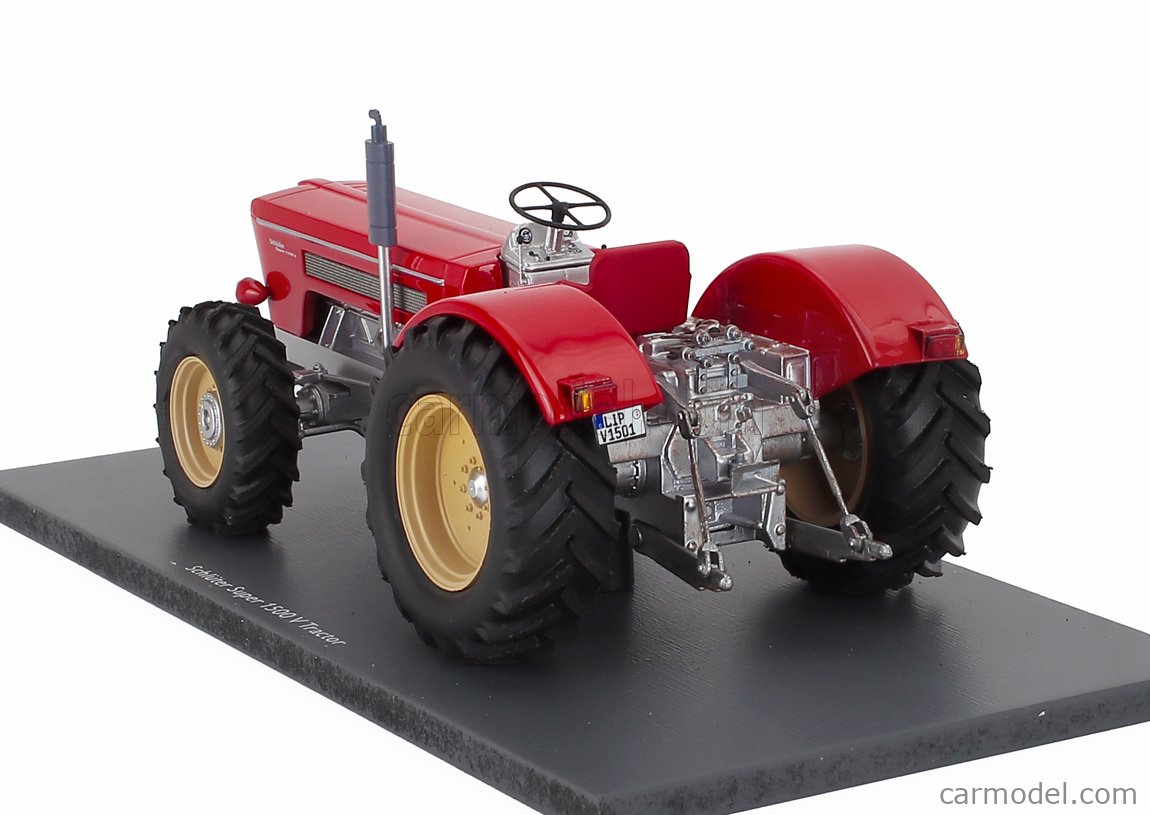

The Schluter Super 1500V is a tractor model rated at approximately 130 horsepower, positioning it at the more powerful end of its class. It was manufactured from 1966 to 1968. The tractor features an 8-cylinder engine and four-wheel drive, paired with a 6-speed gearbox. It has a listed operating weight of 6500 kilograms and is suited to operations covering 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
130 hp
Weight
6500 kg
Catalogue coverage
Variants represented
2
Richest spec table
27 rows
Recorded power
130 hp
Recorded weight
6500 kg
Transmissions
6-speed
Production years
1966-1968
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringpower assistReference
Drum brakesReference
Engine
9.5L 8-cylReference
Fuel tank149.9 LReference
Engine96.9 kWReference
SDM 110 W 8Reference
8-cylinderReference
Displacement9.5 LReference
Bore/Stroke110 x 125 mmReference
Power96.9 kWReference
Rated RPM1800Reference
Torque451.1 NmReference
Torque RPM1300Reference
Transmission
6-speedReference
Gears6 forward and reverseReference
PTO & Hydraulics
Rear lift3000 kgReference
Rear PTO Type540 (1000)Reference
Dimensions
Wheelbase264 cmReference
Weight6500 kgReference
Front tire12.0-24Reference
Rear tire18.4-34Reference
Ag front12.0-24Reference
Ag rear18.4-34Reference
Length494 cmReference
Height193 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
