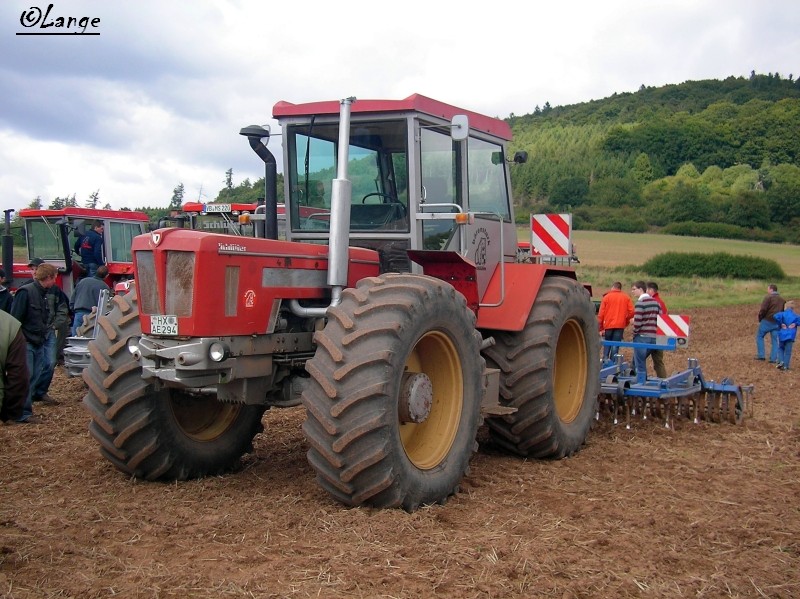

The Schluter Super 1600TVL is a tractor that features a rated power output of 160 hp, placing it at the higher end of its class. Production of the Super 1600TVL spanned the period from 1991 to 1992. The tractor is equipped with a 6-cylinder turbocharged intercooled engine, paired with four-wheel drive and a hydrostatic transmission. It has an operating weight of 6401 kg and is suited to operations of 600–1,500 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
160 hp
Weight
6401 kg
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
160 hp
Recorded weight
6401 kg
Transmissions
24-speed
Production years
1991-1992
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
6.9L 6-cylReference
Fuel tank310.0 LReference
Engine119.3 kWReference
D 0826 LE 503Reference
intercooled turboReference
6-cylinderReference
Displacement6.9 LReference
Bore/Stroke108 x 125 mmReference
Power119.3 kWReference
Rated RPM2200Reference
Transmission
24-speedReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Rear lift6201 kgReference
Rear lift8401 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase280 cmReference
Weight6401 kgReference
Front tire14.9R28Reference
Rear tire18.4R38Reference
Ag front14.9R28Reference
Ag rear18.4R38Reference
Length475 cmReference
Height288 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
