Tractor · 1982Unverified

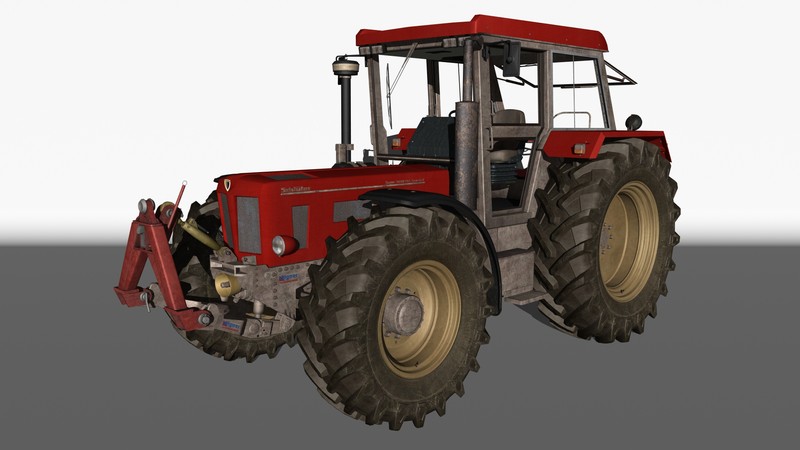

Schluter Super 1800TVL

Name: Schluter Super 1800TVL
Brand: Schluter

Schluter Super 1800TVL · 180 hp. Reference specifications; pending source verification.

The Schluter Super 1800TVL is a tractor model with a rated power output of 180 hp, positioning it within the higher-powered machines in its class. Manufactured between 1982 and 1986, this model features a 6-cylinder turbocharged intercooled engine, paired with a hydrostatic transmission and four-wheel drive. The listed weight of the Schluter Super 1800TVL is 6901 kg, and it is suitable for tasks involving approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

180 hp

Weight

6901 kg

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

180 hp

Recorded weight

6901 kg

Transmissions

12-speed

Production years

1982-1986

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSchluterReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Drum brakesReference

standardReference

Engine

7.4L 6-cylReference

Fuel tank310.0 LReference

Engine134.2 kWReference

SDMT 112 W 6 LLKReference

intercooled turboReference

6-cylinderReference

Displacement7.4 LReference

Bore/Stroke112 x 125 mmReference

Power134.2 kWReference

Rated RPM2100Reference

Torque736.2 NmReference

Torque RPM1300Reference

Transmission

12-speedReference

Gears12 forward and 6 reverseReference

PTO & Hydraulics

Total flow51.1 lpmReference

Rear lift6201 kgReference

Rear lift8401 kgReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase272 cmReference

Weight6901 kgReference

Front tire14.9R30Reference

Rear tire20.8R38Reference

Ag front14.9R30Reference

Ag rear20.8R38Reference

Length467 cmReference

Height292 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
