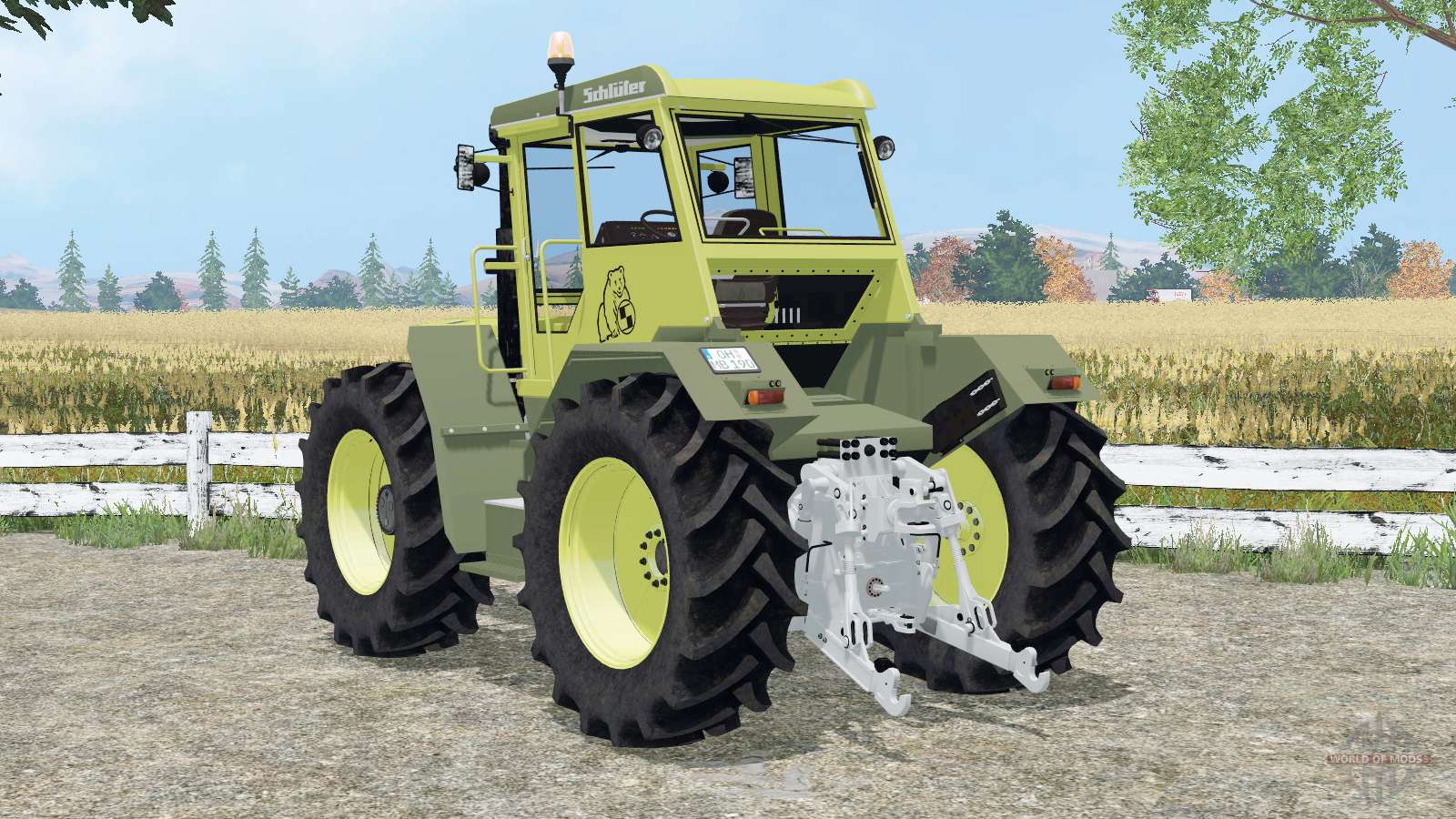

The Schluter Super 1900 TVL-LS is a tractor with an approximate power rating of 190 hp, placing it at the higher end of its class. It was produced between 1992 and 1993. Key features include a 6-cylinder turbocharged intercooled engine and four-wheel drive with a hydrostatic transmission. The tractor's operating weight is specified as 6901 kg and is suitable for operations covering approximately 600–1,500 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
190 hp
Weight
6901 kg
Catalogue coverage
Variants represented
2
Richest spec table
28 rows
Recorded power
190 hp
Recorded weight
6901 kg
Transmissions
24-speed
Production years
1992-1993
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
6.9L 6-cylReference
Fuel tank310.0 LReference
Engine141.7 kWReference
D 0826 LE 501Reference
intercooled turboReference
6-cylinderReference
Displacement6.9 LReference
Bore/Stroke108 x 125 mmReference
Power141.7 kWReference
Rated RPM2200Reference
Transmission
24-speedReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Rear lift6201 kgReference
Rear lift8401 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase280 cmReference
Weight6901 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Ag front16.9R28Reference
Ag rear20.8R38Reference
Length475 cmReference
Height292 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
