Tractor · 1970Unverified

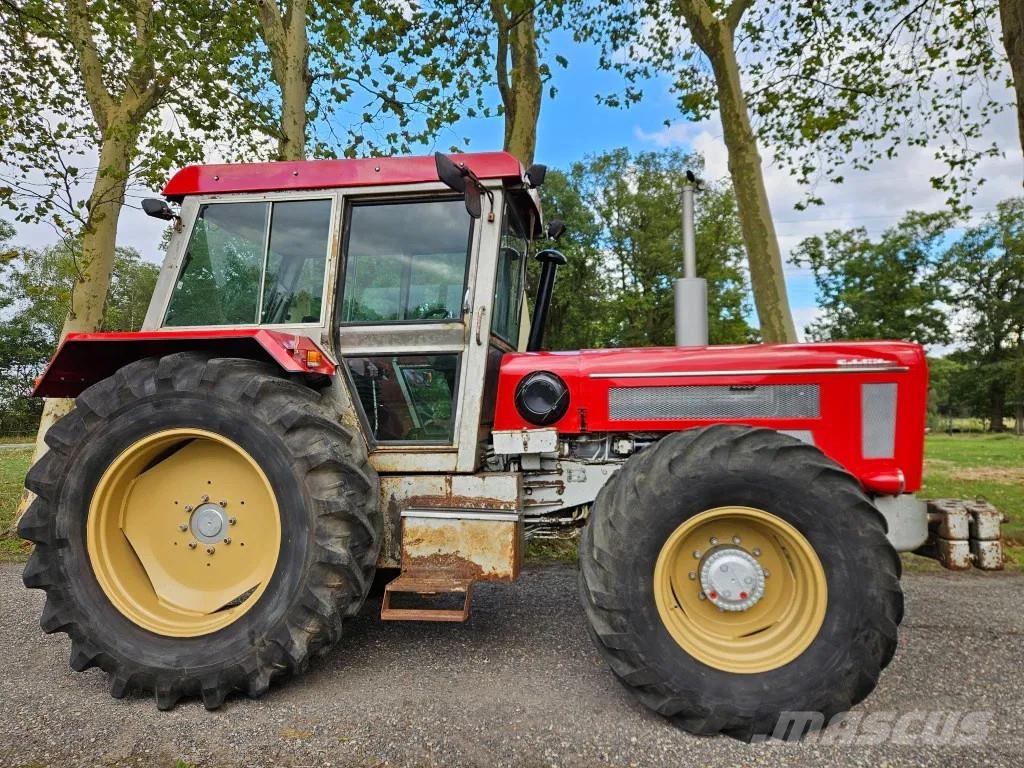

Schluter Super 2000 TV
Schluter Super 2000 TV · 180 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
180 hp
Weight
7721 kg
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringpower assistReference
Drum brakesReference
Engine
Schluter 9.5L 8-cyl dieselReference
Fuel tank275.2 LReference
Engine134.2 kWReference
Schluter SDMT 110 W 8Reference
turbocharged dieselReference
8-cylinderReference
liquid-cooledReference
Displacement9.5 LReference
Bore/Stroke110 x 125 mmReference
Power134.2 kWReference
Rated RPM1800Reference
Torque696.2 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 2 reverseReference
PTO & Hydraulics
Rear lift3800 kgReference
Rear lift5601 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase259 cmReference
Weight7721 kgReference
Front tire16.9-26Reference
Rear tire18.4-38Reference
Ag front16.9-26Reference
Ag rear18.4-38Reference
Length481 cmReference
Height264 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
