Tractor · 1975Unverified

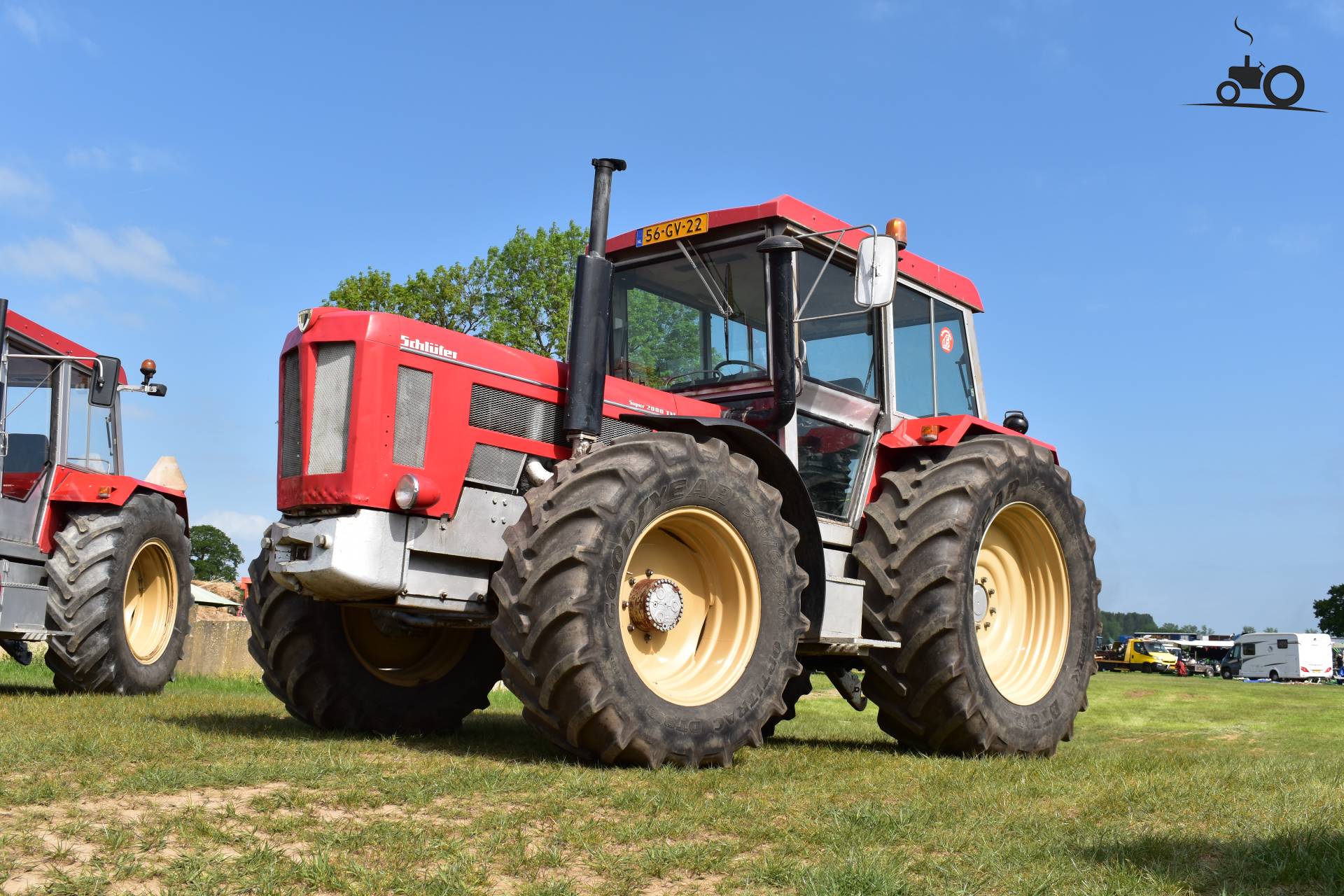

Schluter Super 2000 TVL
Schluter Super 2000 TVL · 185 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
185 hp
Weight
7076 kg
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringpower assist/hydr.Reference
Drum brakesReference
Cab standard.Reference
Engine
Schluter 9.5L 8-cyl dieselReference
Fuel tank275.2 LReference
Fuel tank260.0 LReference
Engine138.0 kWReference
Schluter SDMT 110 W 8Reference
turbocharged dieselReference
8-cylinderReference
liquid-cooledReference
Displacement9.5 LReference
Bore/Stroke110 x 125 mmReference
Power138.0 kWReference
Rated RPM1800Reference
Torque714.1 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 5 reverseReference
PTO & Hydraulics
Rear lift5601 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase258 cmReference
Weight7076 kgReference
Front tire14.9-30Reference
Rear tire20.8-38Reference
Ag front14.9-30Reference
Ag rear20.8-38Reference
Length500 cmReference
Height287 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
