Tractor · 1980Unverified

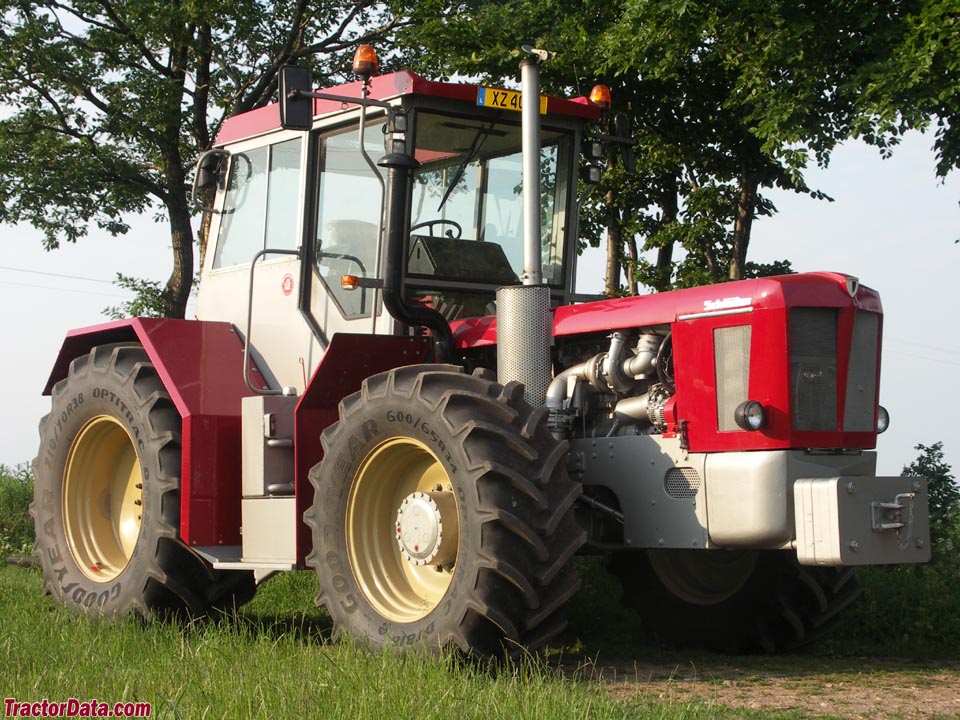

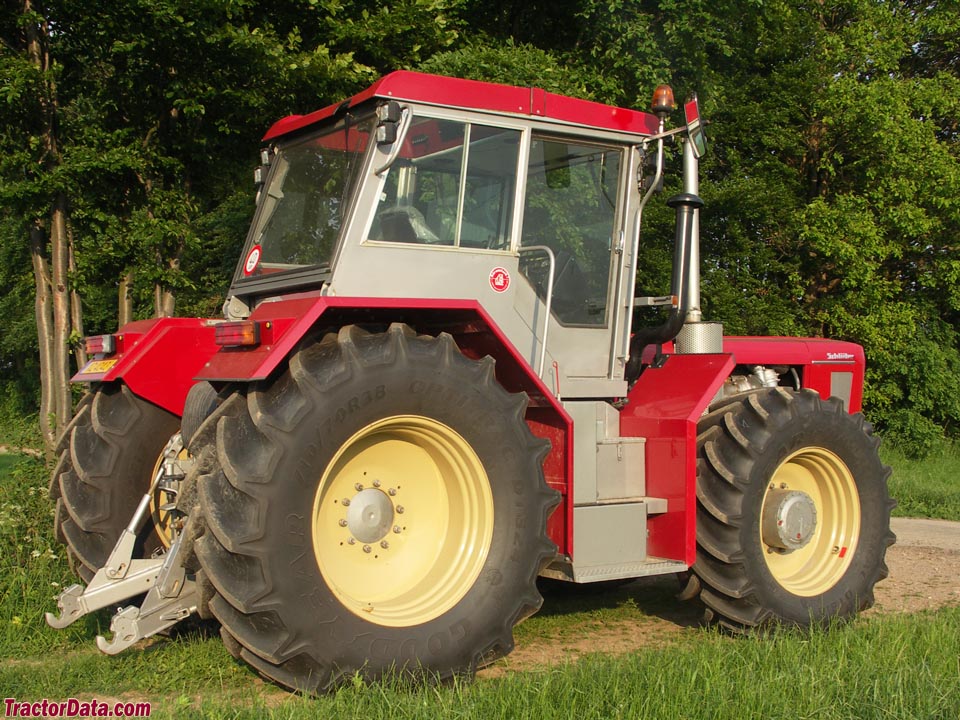

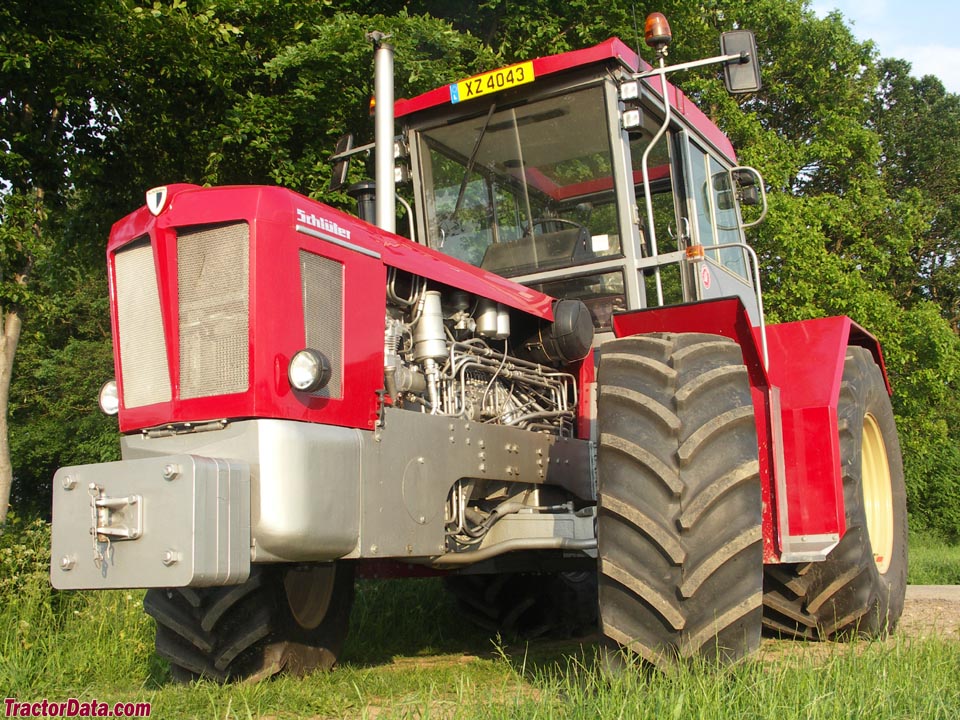

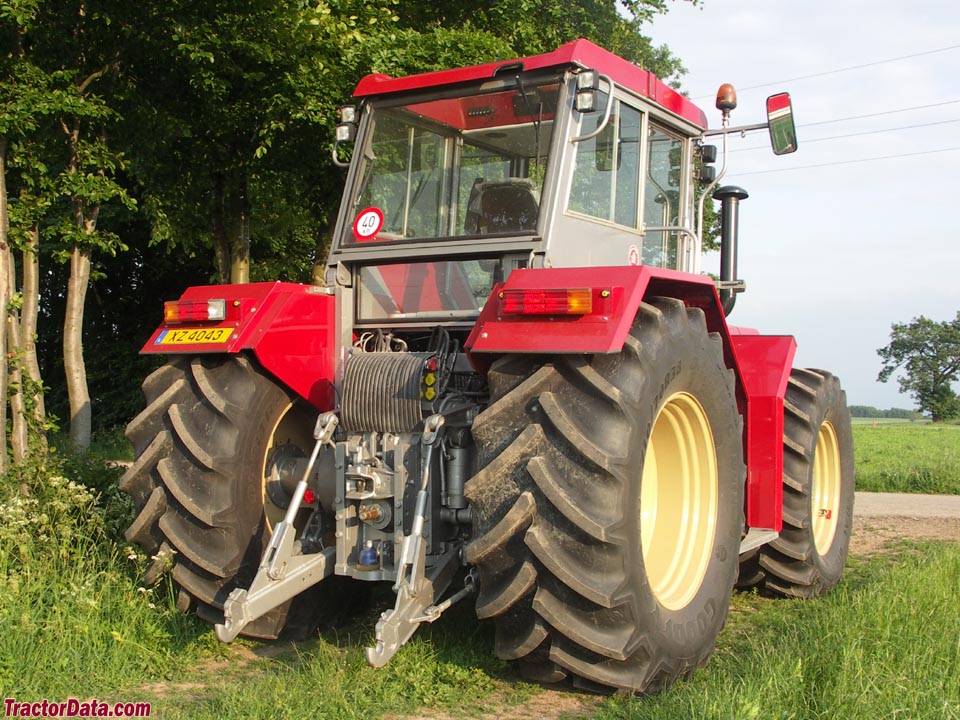

Schluter Super 2500 VL

Name: Schluter Super 2500 VL
Brand: Schluter

Schluter Super 2500 VL · 240 hp. Reference specifications; pending source verification.

The Schluter Super 2500 VL is a tractor with a rated power of 240 hp, placing it at the more powerful end of its class. It was manufactured from 1980 to 1987. The tractor features a 6-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its listed operating weight is 9501 kg, suitable for operations of 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

240 hp

Weight

9501 kg

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

240 hp

Recorded weight

9501 kg

Transmissions

18-speed

Production years

1980-1987

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSchluterReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Dry disc brakesReference

Cab standard.Reference

Engine

MAN 11.4L 6-cyl dieselReference

Fuel tank430.0 LReference

Engine179.0 kWReference

MAN D 2566 MEReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement11.4 LReference

Bore/Stroke125 x 155 mmReference

Power179.0 kWReference

Rated RPM2200Reference

Torque844.1 NmReference

Torque RPM1500Reference

Transmission

18-speedReference

Gears18 forward and 6 reverseReference

PTO & Hydraulics

Total flow56.0 lpmReference

Rear lift8401 kgReference

Rear PTO Type1000Reference

Dimensions

Wheelbase294 cmReference

Weight9501 kgReference

Front tire18.4R34Reference

Rear tire20.8R42Reference

Ag front18.4R34Reference

Ag rear20.8R42Reference

Length608 cmReference

Height325 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
