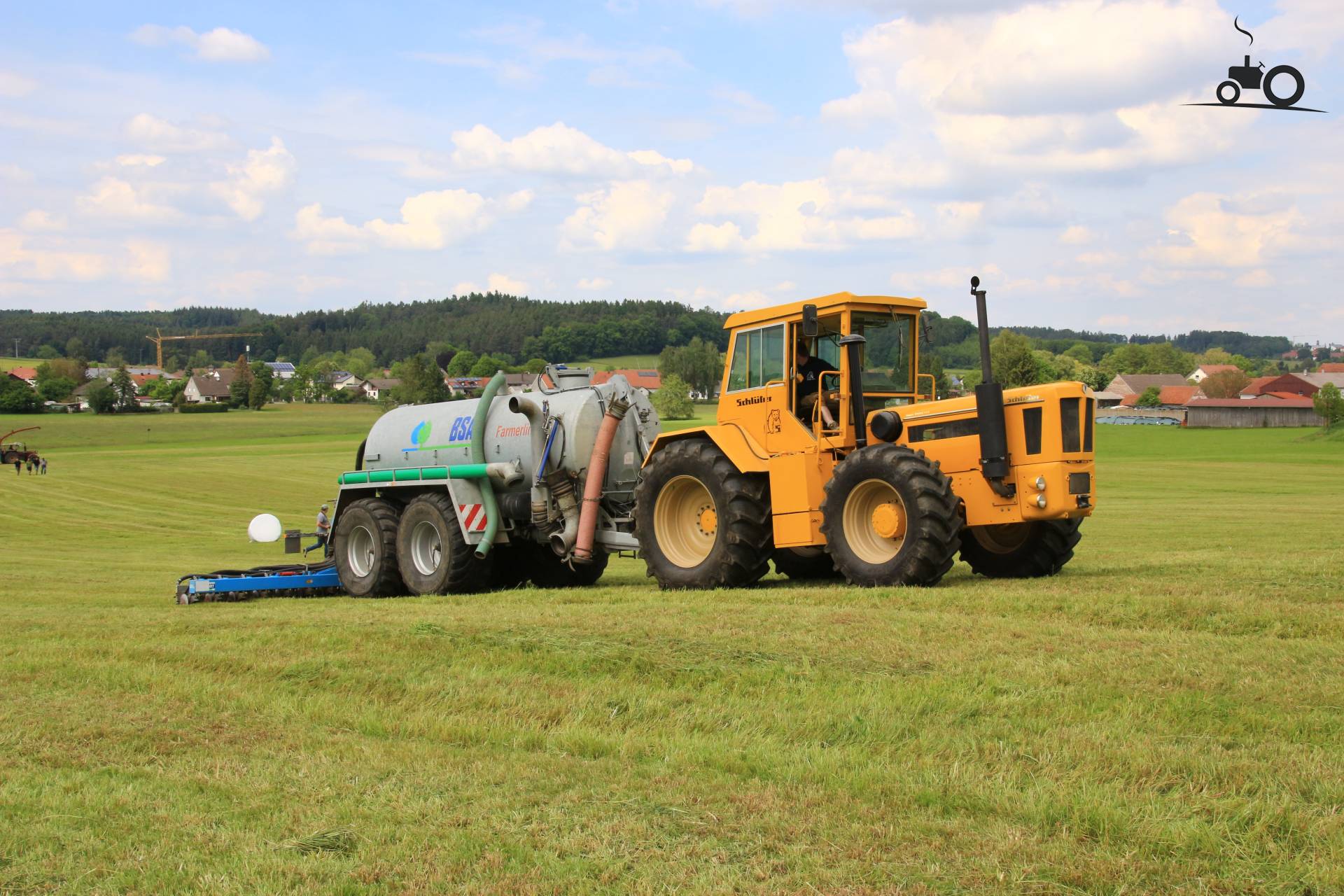

The Schluter Super 3000 TVL is a tractor rated at approximately 280 hp, placing it at the higher power end of its class. It was produced between 1981 and 1985. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. Its listed operating weight is 9601 kg, making it suitable for operations of 1,500 acres or more.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
280 hp
Weight
9601 kg
Catalogue coverage
Variants represented
2
Richest spec table
31 rows
Recorded power
280 hp
Recorded weight
9601 kg
Transmissions
18-speed
Production years
1981-1985
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Dry disc brakesReference
Cab standard.Reference
Engine
MAN 11.4L 6-cyl dieselReference
Fuel tank430.0 LReference
Engine208.8 kWReference
MAN D 2566 MTEReference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement11.4 LReference
Bore/Stroke125 x 155 mmReference
Power208.8 kWReference
Rated RPM2200Reference
Torque1030.2 NmReference
Torque RPM1500Reference
Transmission
18-speedReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
Total flow56.0 lpmReference
Rear lift8401 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase294 cmReference
Weight9601 kgReference
Front tire18.4R34Reference
Rear tire20.8R42Reference
Ag front18.4R34Reference
Ag rear20.8R42Reference
Length608 cmReference
Height325 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
