Tractor · 1967Unverified

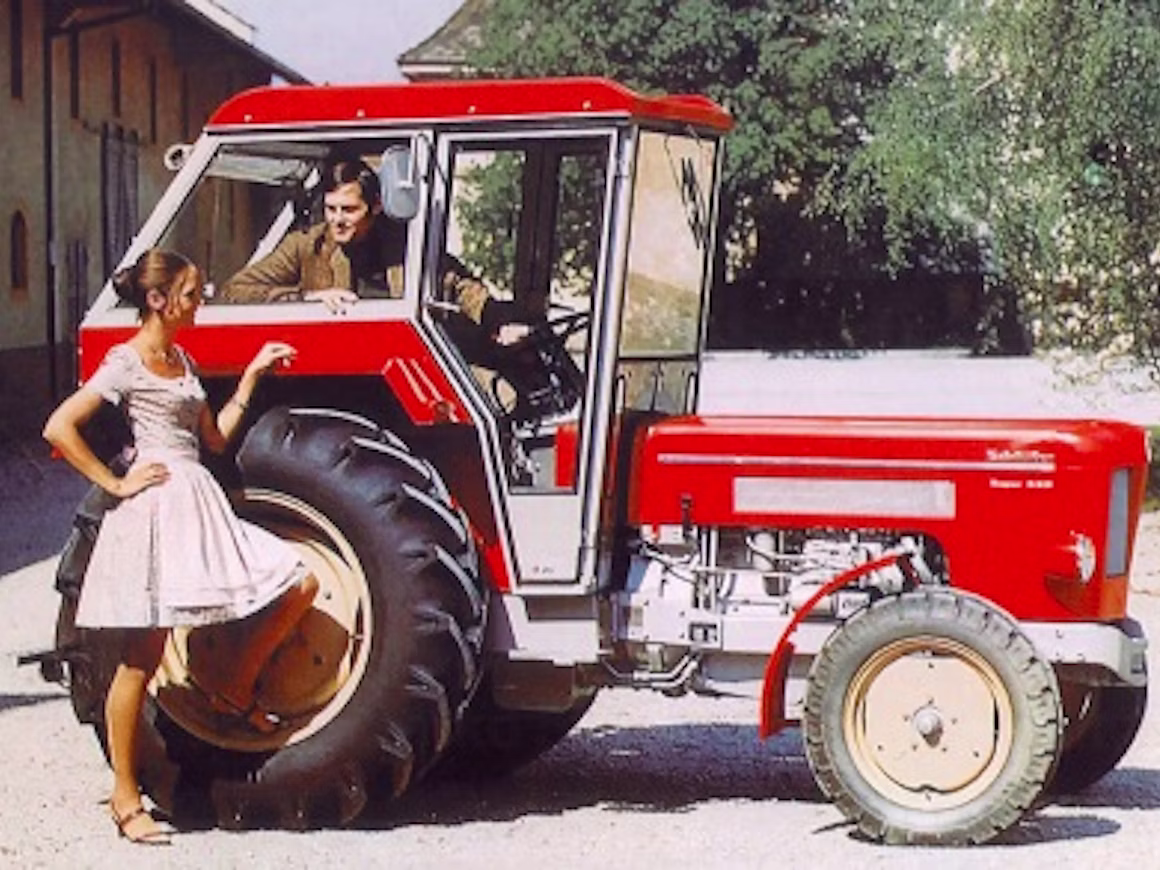

Schluter Super 350
Schluter Super 350 · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
5688 to 6383 pounds
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
SteeringmechanicalReference
Drum brakesReference
Engine
2.9L 3-cylReference
Fuel tank57.2 LReference
Engine26.1 kWReference
SD 100 W 3Reference
3-cylinderReference
Displacement2.9 LReference
Bore/Stroke100 x 125 mmReference
Power26.1 kWReference
Rated RPM1800Reference
Torque147.0 NmReference
Torque RPM1300Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Total flow18.9 lpmReference
Total flow26.1 lpmReference
Rear lift1500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase199 cmReference
Weight5688 to 6383 poundsReference
Front tire6.00-16Reference
Rear tire11.2-28Reference
Ag front6.00-16 (2WD)Reference
Ag front7.50-18 (4WD)Reference
Ag rear11.2-28 (2WD)Reference
Ag rear12.4-28 (4WD)Reference
Length348 cmReference
Height240 cmReference
Weight2580 kgReference
Weight2895 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
