Tractor · 1966Unverified

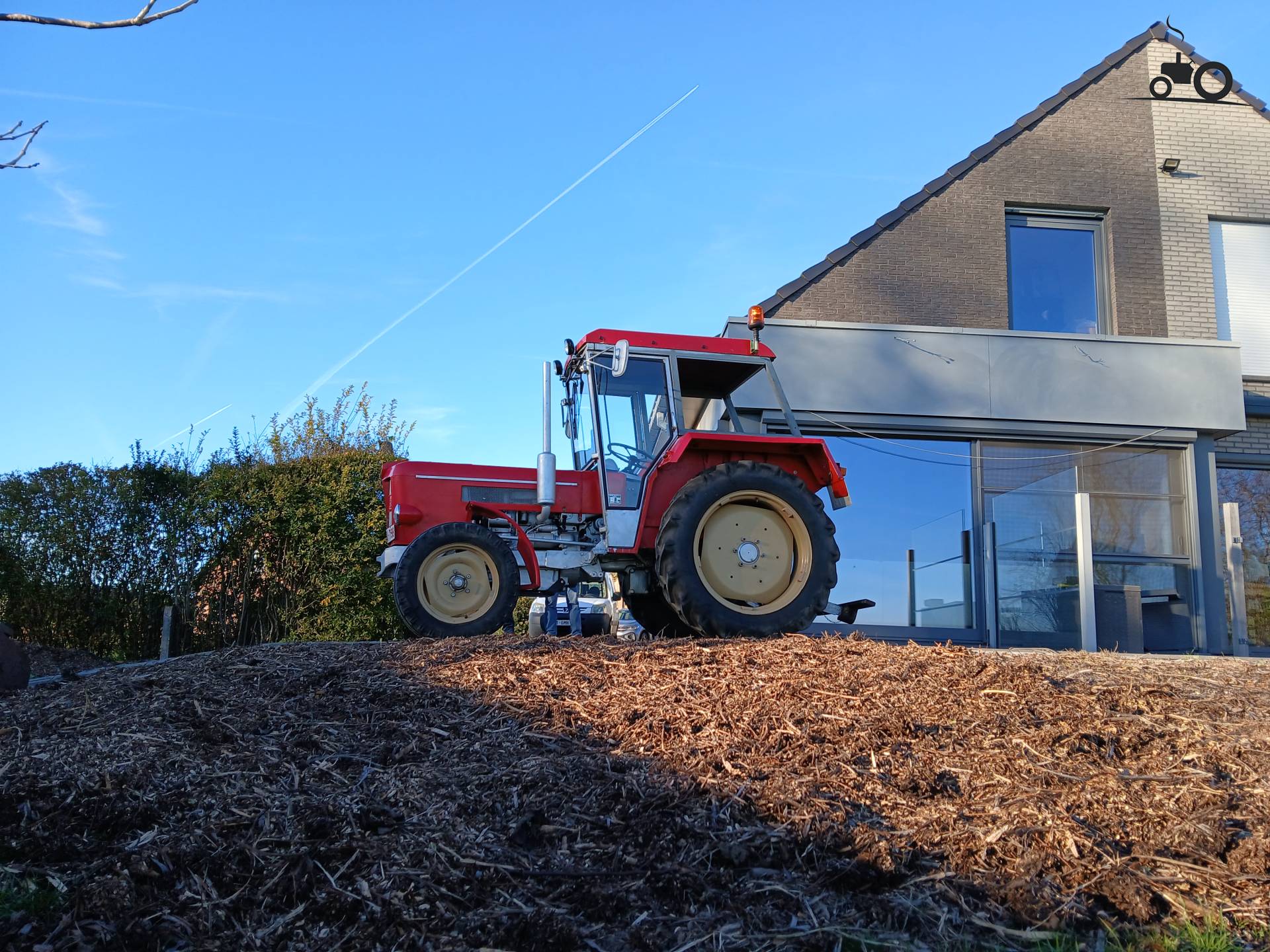

Schluter Super 400
Schluter Super 400 · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
4729 to 5424 pounds
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
SteeringmechanicalReference
Drum brakesReference
Engine
3.2L 3-cylReference
Fuel tank65.1 LReference
Engine31.3 kWReference
SD 105 W 3Reference
3-cylinderReference
Displacement3.2 LReference
Bore/Stroke105 x 125 mmReference
Power31.3 kWReference
Rated RPM1800Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear lift1500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase199 cmReference
Weight4729 to 5424 poundsReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16 (2WD)Reference
Ag front7.2-24 (4WD)Reference
Ag rear12.4-28 (2WD)Reference
Ag rear9.5-36 (4WD)Reference
Length348 cmReference
Height159 cmReference
Weight2145 kgReference
Weight2460 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
