Tractor · 1966Unverified

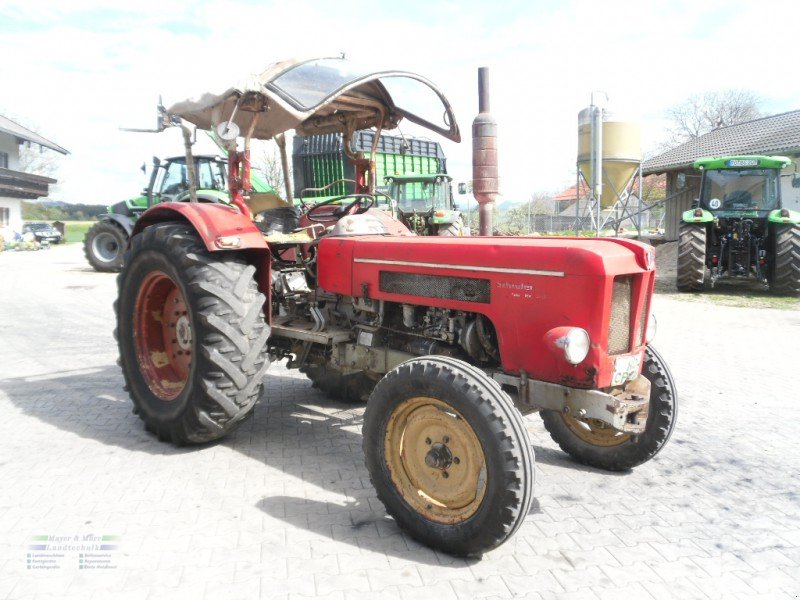

Schluter Super 500
Schluter Super 500 · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
5622 to 6284 pounds
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
SteeringmechanicalReference
Drum brakesReference
Engine
3.9L 4-cylReference
Fuel tank57.2 LReference
Fuel tank65.1 LReference
Engine38.8 kWReference
SD 100 W 4Reference
4-cylinderReference
Displacement3.9 LReference
Bore/Stroke100 x 125 mmReference
Power38.8 kWReference
Rated RPM1800Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear lift1500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase217 cmReference
Weight5622 to 6284 poundsReference
Front tire6.00-16Reference
Rear tire12.4-32Reference
Ag front6.00-16 (2WD)Reference
Ag front7.2-24 (4WD)Reference
Ag rear12.4-32Reference
Length367 cmReference
Height167 cmReference
Weight2550 kgReference
Weight2850 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
