Tractor · 1968Unverified

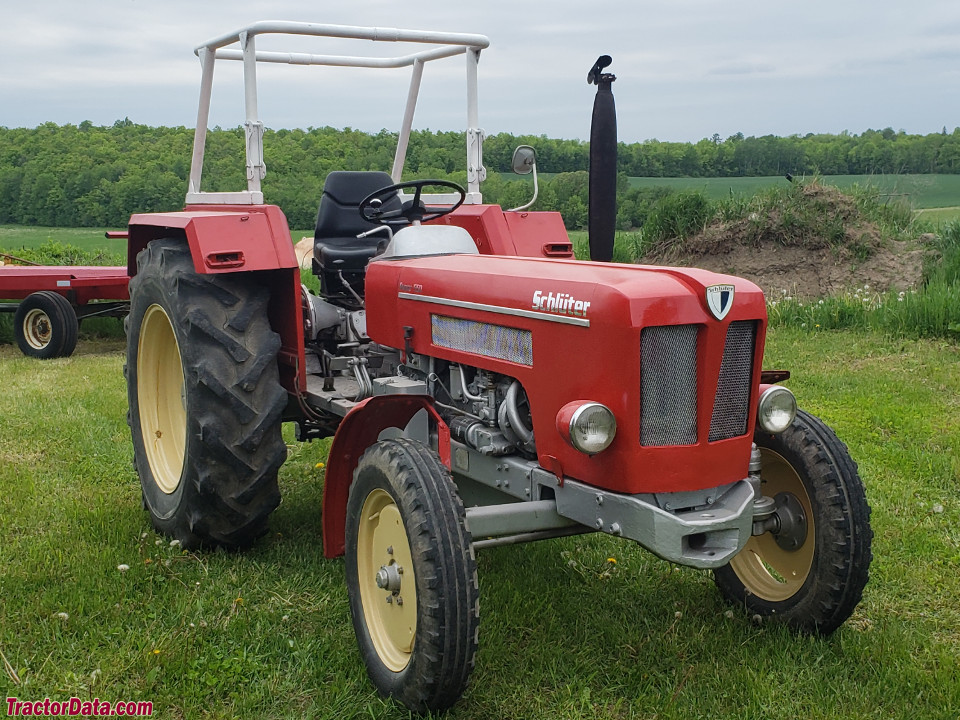

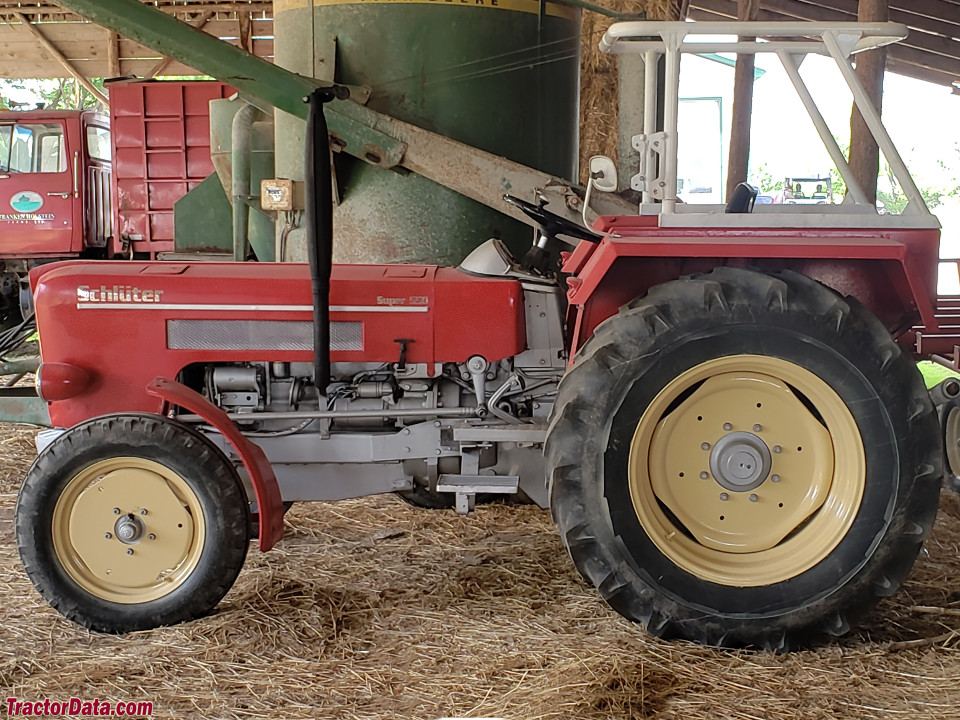

Schluter Super 550
Schluter Super 550 · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
6559 to 7420 pounds
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Two- or four-wheel driveReference
SteeringmechanicalReference
Drum brakesReference
Open operator station.Reference
Engine
Schluter 3.9L 4-cyl dieselReference
Fuel tank65.1 LReference
Engine (gross)44.9 kWReference
Engine (net)40.5 kWReference
Schluter SD 100 W 4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke100 x 125 mmReference
Power (net)40.5 kWReference
Power (gross)44.9 kWReference
Rated RPM1800Reference
Torque225.1 NmReference
Torque RPM1300Reference
Transmission
8-speedReference
16-speedReference
Gears8 forward and 4 reverseReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Total flow18.9 lpmReference
Total flow26.1 lpmReference
Rear TypeII/IReference
Rear lift1500 kgReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase217 cmReference
Weight6559 to 7420 poundsReference
Front tire6.00-19Reference
2WD Rear tire11-32Reference
2WD Standard tires (ag)Front: 6.00-19. Rear: 11-32Reference
4WD Standard tires (ag)Front: 7-24. Rear: 11-32Reference
2WD Optional tires (ag)Front: 6.00-19. Rear: 13-30Reference
2WD Optional tires (ag)Front: 6.50-20. Rear: 11-36Reference
4WD Optional tires (ag)Front: 8-24. Rear: 13-30Reference
Length366 cmReference
2WD Width167 cmReference
4WD Width170 cmReference
Height167 cmReference
Height (cab)227 cmReference
2WD Weight2975 kgReference
4WD Weight3365 kgReference
2WD Ground clearance37 cmReference
4WD Ground clearance28 cmReference
2WD Front tread135 cmReference
2WD Front tread125 to 185 cmReference
4WD Front tread137 cmReference
Rear tread1358/150 cmReference
Rear tread163 to 178 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
