Tractor · 1968Unverified

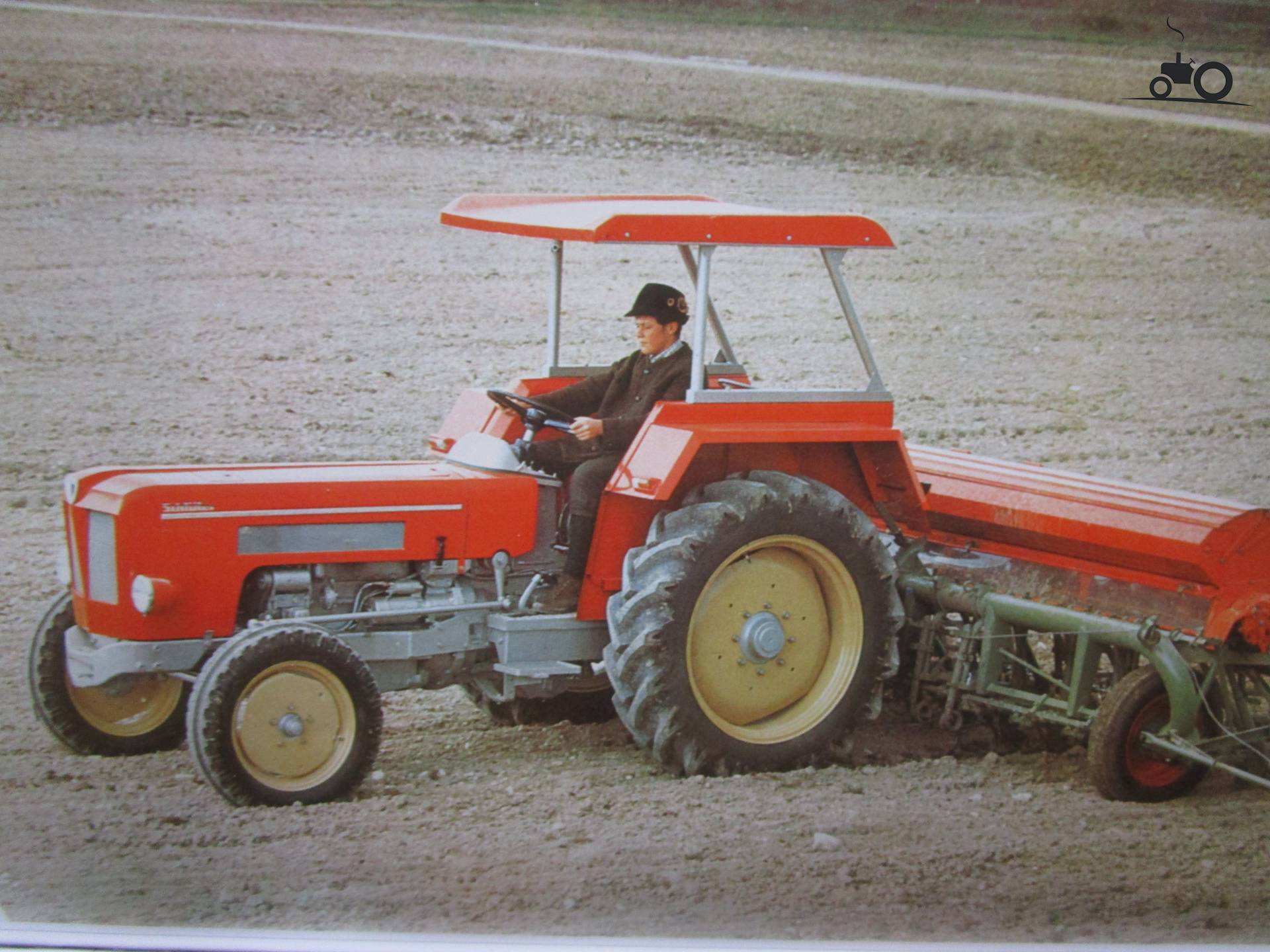

Schluter Super 550S
Schluter Super 550S · 58 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
58 hp
Weight
6471 to 7332 pounds
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
SteeringmechanicalReference
Drum brakesReference
Engine
3.9L 4-cylReference
Engine43.3 kWReference
SD 100 W 4Reference
4-cylinderReference
Displacement3.9 LReference
Bore/Stroke100 x 125 mmReference
Power43.3 kWReference
Rated RPM1800Reference
Torque225.1 NmReference
Torque RPM1300Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Total flow18.9 lpmReference
Total flow26.1 lpmReference
Rear lift2050 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase227 cmReference
Weight6471 to 7332 poundsReference
Front tire6.50-20Reference
Rear tire12.4-36Reference
Ag front6.50-20 (2WD)Reference
Ag front9.5-24 (4WD)Reference
Ag rear12.4-36 (2WD)Reference
Ag rear16.9-30 (4WD)Reference
Length387 cmReference
Height244 cmReference
Weight2935 kgReference
Weight3325 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
