Tractor · 1966Unverified

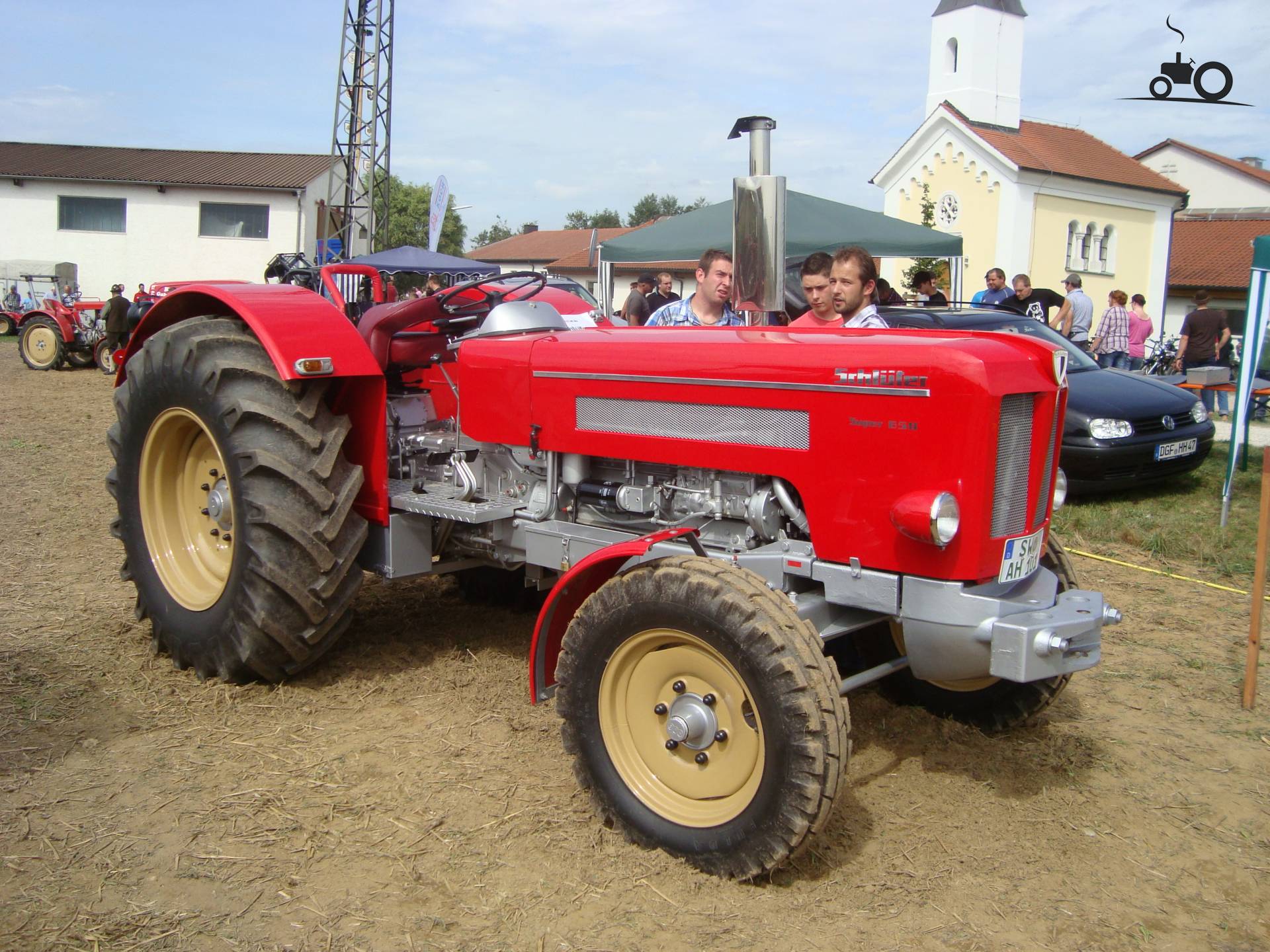

Schluter Super 650
Schluter Super 650 · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
6967 to 7850 pounds
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
SteeringmechanicalReference
Drum brakesReference
Engine
5.9L 6-cylReference
Fuel tank82.1 LReference
Fuel tank85.9 LReference
Engine48.5 kWReference
SD 100 W 6Reference
6-cylinderReference
Displacement5.9 LReference
Bore/Stroke100 x 125 mmReference
Power48.5 kWReference
Rated RPM1800Reference
Torque275.0 NmReference
Torque RPM1300Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Total flow18.9 lpmReference
Total flow26.1 lpmReference
Rear lift2050 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase248 cmReference
Weight6967 to 7850 poundsReference
Front tire6.50-20Reference
Rear tire12.4-36Reference
Ag front6.50-20 (2WD)Reference
Ag front9.5-24 (4WD)Reference
Ag rear12.4-36 (2WD)Reference
Ag rear16.9-30 (4WD)Reference
Length420 cmReference
Height244 cmReference
Weight3160 kgReference
Weight3560 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
