Tractor · 1966Unverified

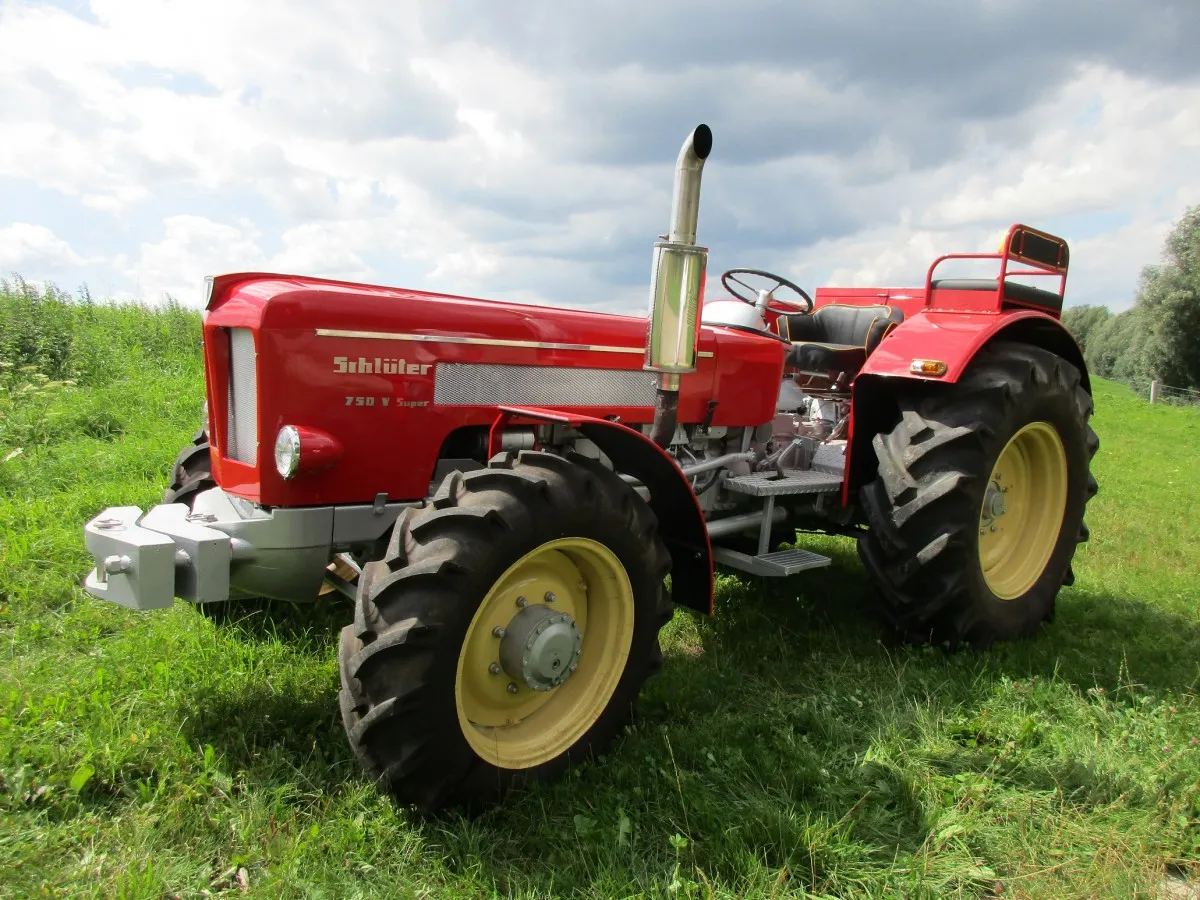

Schluter Super 750
Schluter Super 750 · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
7629 to 8754 pounds
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringmechanical/power assistReference
Drum brakesReference
Engine
6.5L 6-cylReference
Fuel tank104.8 LReference
Engine55.9 kWReference
SD 105 W 6Reference
6-cylinderReference
Displacement6.5 LReference
Bore/Stroke105 x 125 mmReference
Power55.9 kWReference
Rated RPM1800Reference
Torque324.1 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow26.1 lpmReference
Rear lift2650 kgReference
Rear lift2800 kgReference
Rear PTO Type540/975Reference
Dimensions
Wheelbase262 cmReference
Weight7629 to 8754 poundsReference
Front tire6.50-20Reference
Rear tire13.6-36Reference
Ag front6.50-20 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear13.6-36Reference
Length434 cmReference
Height249 cmReference
Weight3460 kgReference
Weight3970 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
