Tractor · 1967Unverified

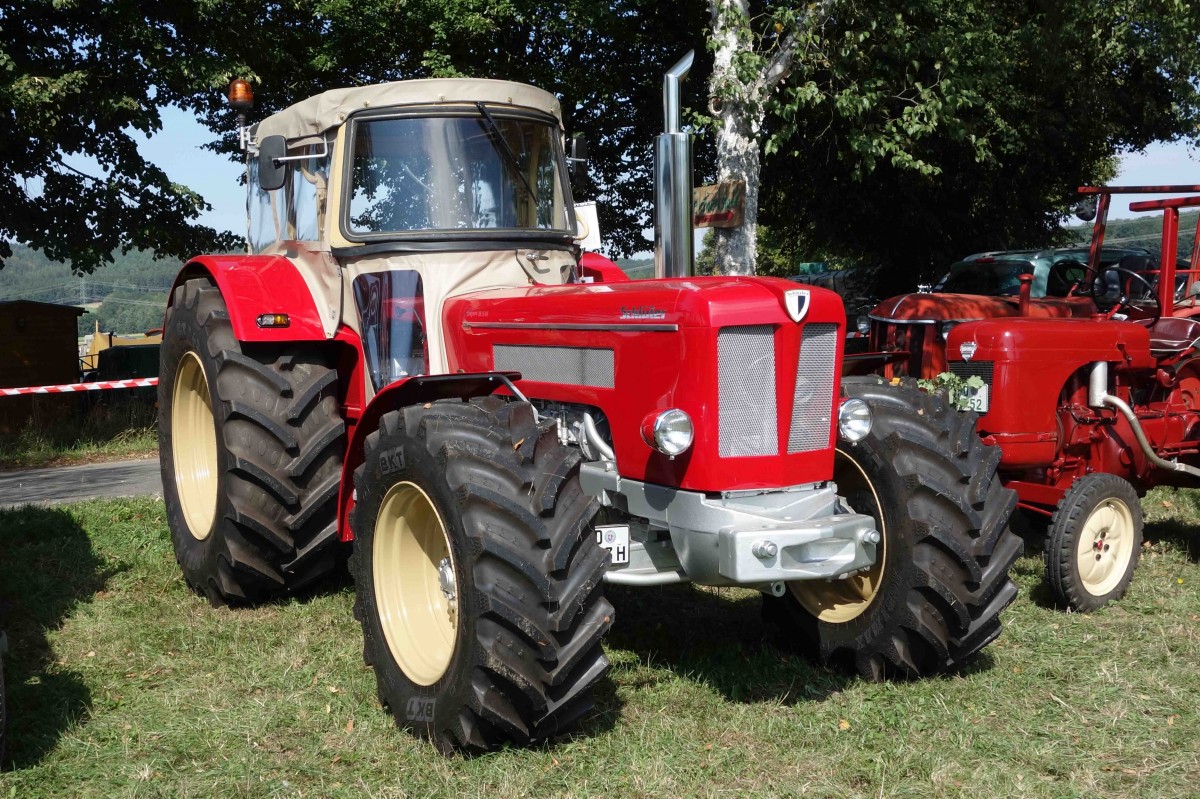

Schluter Super 950
Schluter Super 950 · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
8312 to 9239 pounds
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringpower assistReference
Drum brakesReference
Engine
7.1L 6-cylReference
Fuel tank124.9 LReference
Engine70.8 kWReference
SD 110 W 6Reference
6-cylinderReference
Displacement7.1 LReference
Bore/Stroke108 x 125 mmReference
Power70.8 kWReference
Rated RPM1800Reference
Torque402.1 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 6 reverseReference
PTO & Hydraulics
Total flow26.1 lpmReference
Rear lift3200 kgReference
Rear lift4500 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase262 cmReference
Weight8312 to 9239 poundsReference
Front tire6.50-20Reference
Rear tire16.9-34Reference
Ag front6.50-20 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear16.9-34Reference
Length438 cmReference
Height249 cmReference
Weight3770 kgReference
Weight4190 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
