Tractor · 1981Unverified

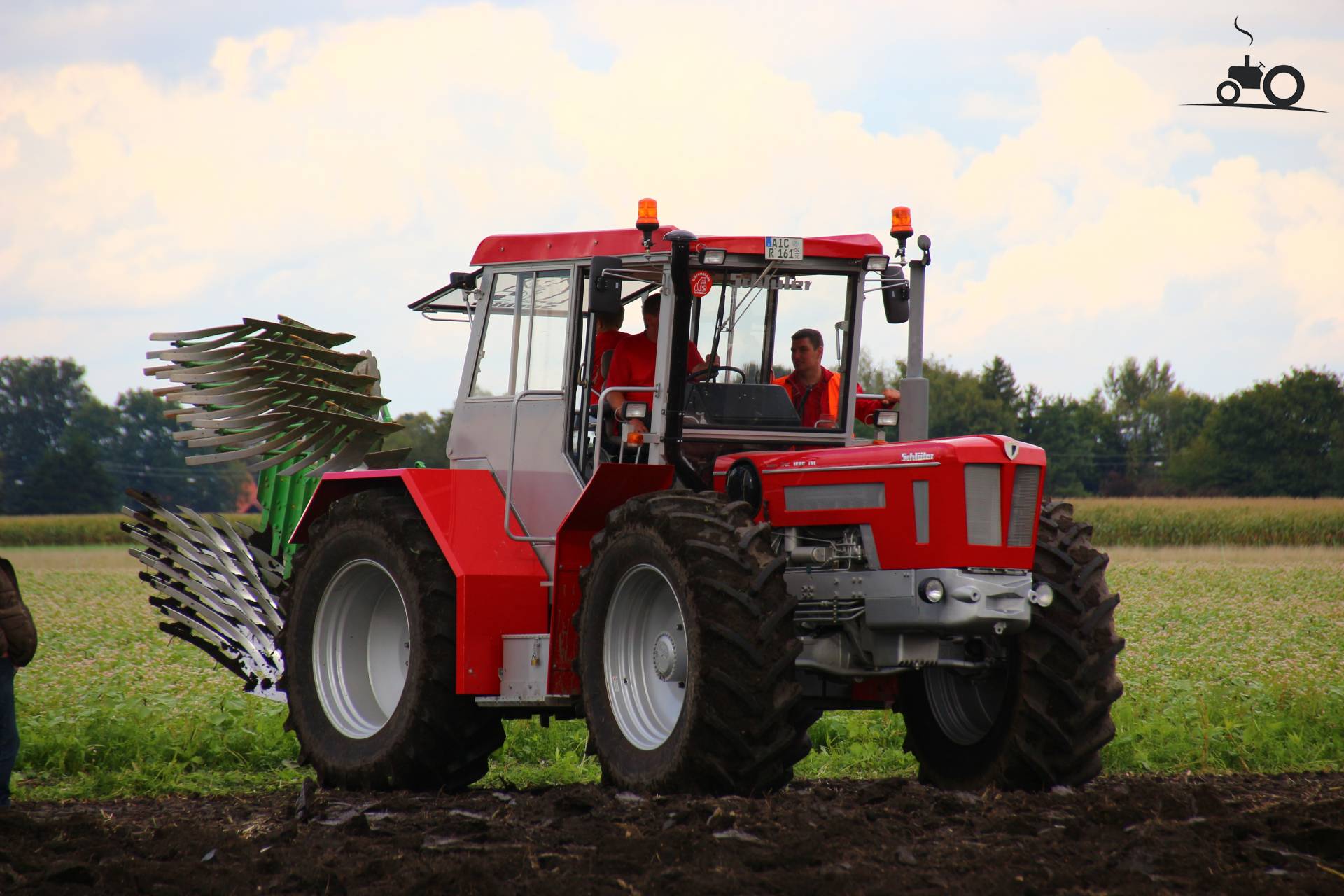

Schluter Super-Trac 1600 TVL
Schluter Super-Trac 1600 TVL · 160 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
160 hp
Weight
7201 kg
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
7.4L 6-cyl dieselReference
Fuel tank310.0 LReference
Engine119.3 kWReference
SDMT 112 W 6Reference
turbocharged dieselReference
6-cylinderReference
Displacement7.4 LReference
Bore/Stroke112 x 125 mmReference
Power119.3 kWReference
Rated RPM2000Reference
Torque618.1 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
Gears12 forward and 5 reverseReference
PTO & Hydraulics
Total flow46.2 lpmReference
Rear lift6201 kgReference
Rear lift7201 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase294 cmReference
Weight7201 kgReference
Front tire18.4R38Reference
Rear tire18.4R38Reference
Ag front18.4R38Reference
Ag rear18.4R38Reference
Length565 cmReference
Height319 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
