Tractor · 1988Unverified

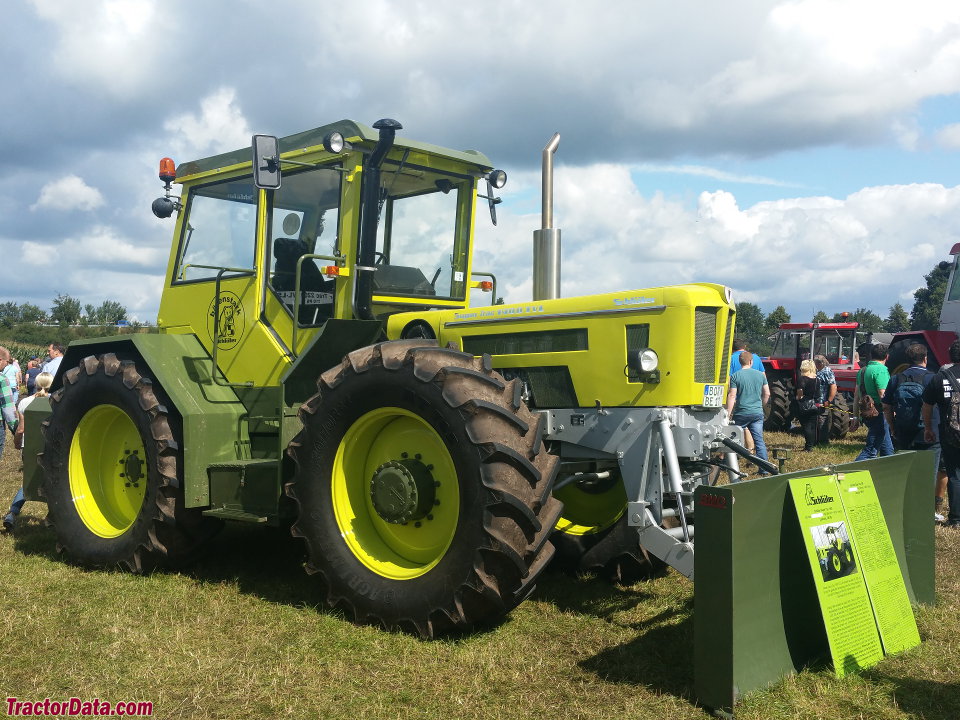

Schluter Super-Trac 1900 TVL
Schluter Super-Trac 1900 TVL — Four-wheel Drive (4WD) tractor · 185 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
185 hp
Weight
7601 kg
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Four-wheel Drive (4WD) tractorReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
7.4L 6-cyl dieselReference
Fuel tank310.0 LReference
Engine138.0 kWReference
SDMT 112 W 6 LLKReference
intercooled turbocharged dieselReference
6-cylinderReference
Displacement7.4 LReference
Bore/Stroke112 x 125 mmReference
Power138.0 kWReference
Rated RPM2000Reference
Torque RPM1400Reference
Transmission
12-speedReference
24-speedReference
Gears12 forward and 5 reverseReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Total flow48.8 lpmReference
Total flow51.1 lpmReference
Rear lift6201 kgReference
Rear lift8401 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase304 cmReference
Weight7601 kgReference
Front tire20.8R38Reference
Rear tire20.8R38Reference
Ag front20.8R38Reference
Ag rear20.8R38Reference
Length575 cmReference
Height326 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
