Tractor · 1992Unverified

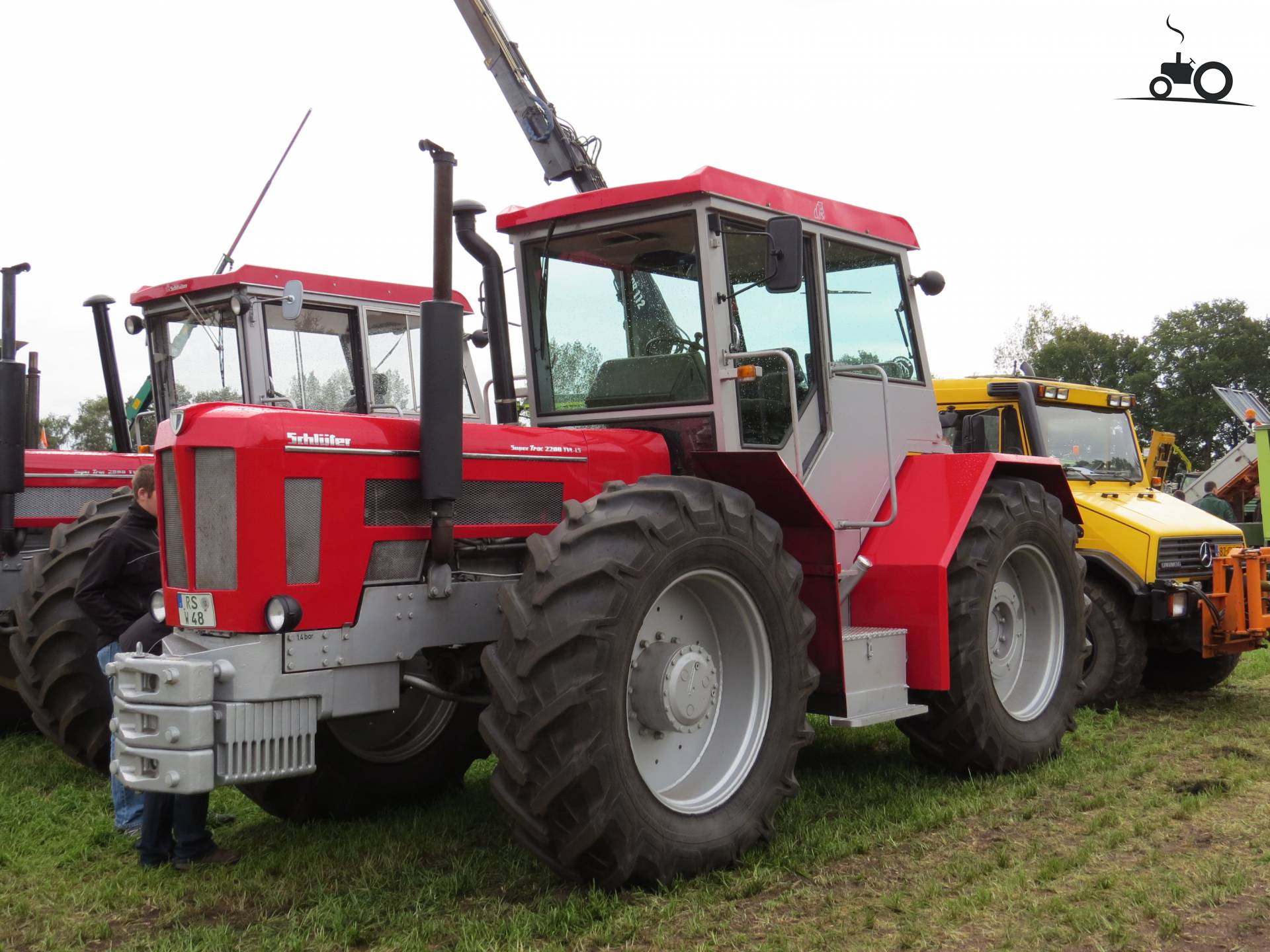

Schluter Super-Trac 2200 LS

Name: Schluter Super-Trac 2200 LS
Brand: Schluter

Schluter Super-Trac 2200 LS · 210 hp. Reference specifications; pending source verification.

The Schluter Super-Trac 2200 LS is a high-powered tractor model with a rated output of 210 hp, positioning it within the upper capacity range of its class. The Super-Trac 2200 LS was manufactured from 1992 to 1993. It is equipped with a 6-cylinder turbocharged diesel engine, transmitting power through a hydrostatic transmission to four-wheel drive. The listed weight of the Super-Trac 2200 LS is 8691 kg, making it suitable for tasks involving approximately 600–1,500 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

210 hp

Weight

8691 kg

Catalogue coverage

Variants represented

Richest spec table

31 rows

Recorded power

210 hp

Recorded weight

8691 kg

Transmissions

24-speed

Production years

1992-1993

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSchluterReference

Drive4x4 4WDReference

Steeringhydrostatic powerReference

Drum brakesReference

standardReference

Engine

Liebherr 9.2L 6-cyl dieselReference

Fuel tank300.2 LReference

Engine156.6 kWReference

Liebherr D 916 TReference

turbocharged dieselReference

6-cylinderReference

Displacement9.2 LReference

Bore/Stroke120 x 135 mmReference

Power156.6 kWReference

Rated RPM2100Reference

Torque855.1 NmReference

Torque RPM1400Reference

Transmission

24-speedReference

Gears24 forward and 10 reverseReference

PTO & Hydraulics

Total flow60.2 lpmReference

Rear lift6201 kgReference

Rear lift8401 kgReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase304 cmReference

Weight8691 kgReference

Front tire20.8R38Reference

Rear tire20.8R38Reference

Ag front20.8R38Reference

Ag rear20.8R38Reference

Length596 cmReference

Height324 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
