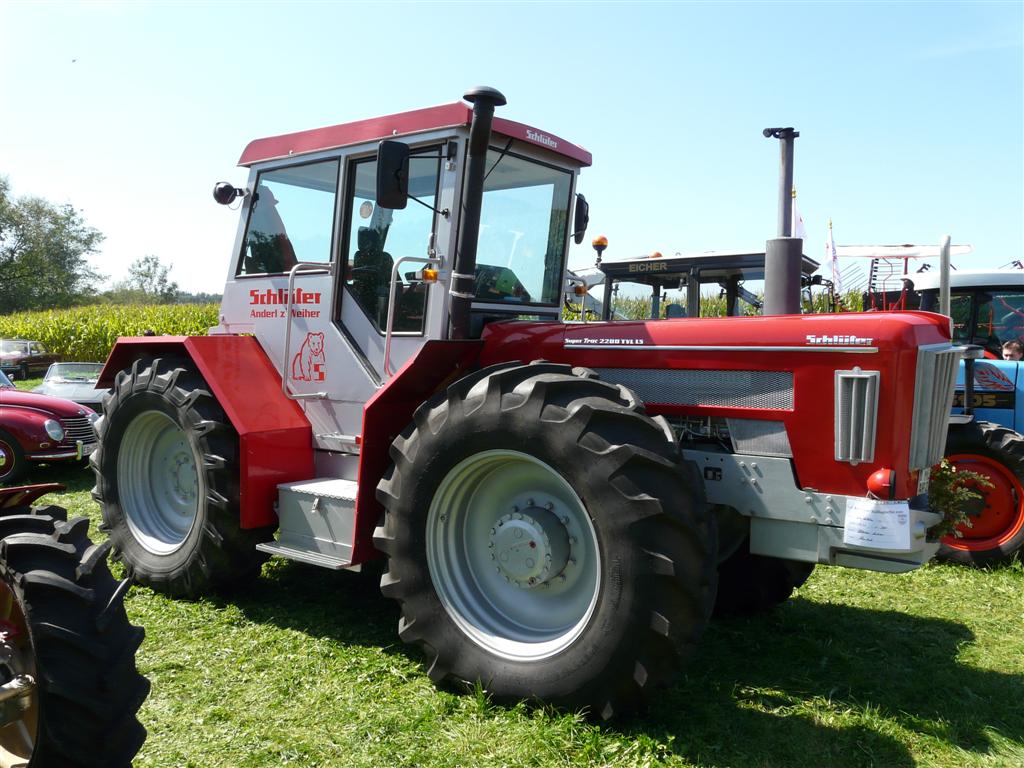

The Schluter Super-Trac 2200 TVL is a tractor model with a rated power output of 200 hp, placing it at the higher end of its class in terms of power. This model was produced from 1988 to 1992. It features an 8-cylinder turbocharged diesel engine coupled with a four-wheel drive system and a hydrostatic transmission. The tractor's listed operating weight is 8301 kg, and it is suitable for operations covering areas of 600–1,500 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
200 hp
Weight
8301 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
200 hp
Recorded weight
8301 kg
Transmissions
12-speed
Production years
1988-1992
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Drum brakesReference
standardReference
Engine
9.9L 8-cyl dieselReference
Fuel tank310.0 LReference
Engine149.1 kWReference
SDMT 112 W 8Reference
turbocharged dieselReference
8-cylinderReference
Displacement9.9 LReference
Bore/Stroke112 x 125 mmReference
Power149.1 kWReference
Rated RPM2000Reference
Torque853.2 NmReference
Torque RPM1300Reference
Transmission
12-speedReference
24-speedReference
Gears12 forward and 5 reverseReference
Gears24 forward and 12 reverseReference
PTO & Hydraulics
Total flow51.1 lpmReference
Rear lift6201 kgReference
Rear lift8401 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase294 cmReference
Wheelbase304 cmReference
Weight8301 kgReference
Front tire20.8R38Reference
Rear tire20.8R38Reference
Ag front20.8R38Reference
Ag rear20.8R38Reference
Length592 cmReference
Height326 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
