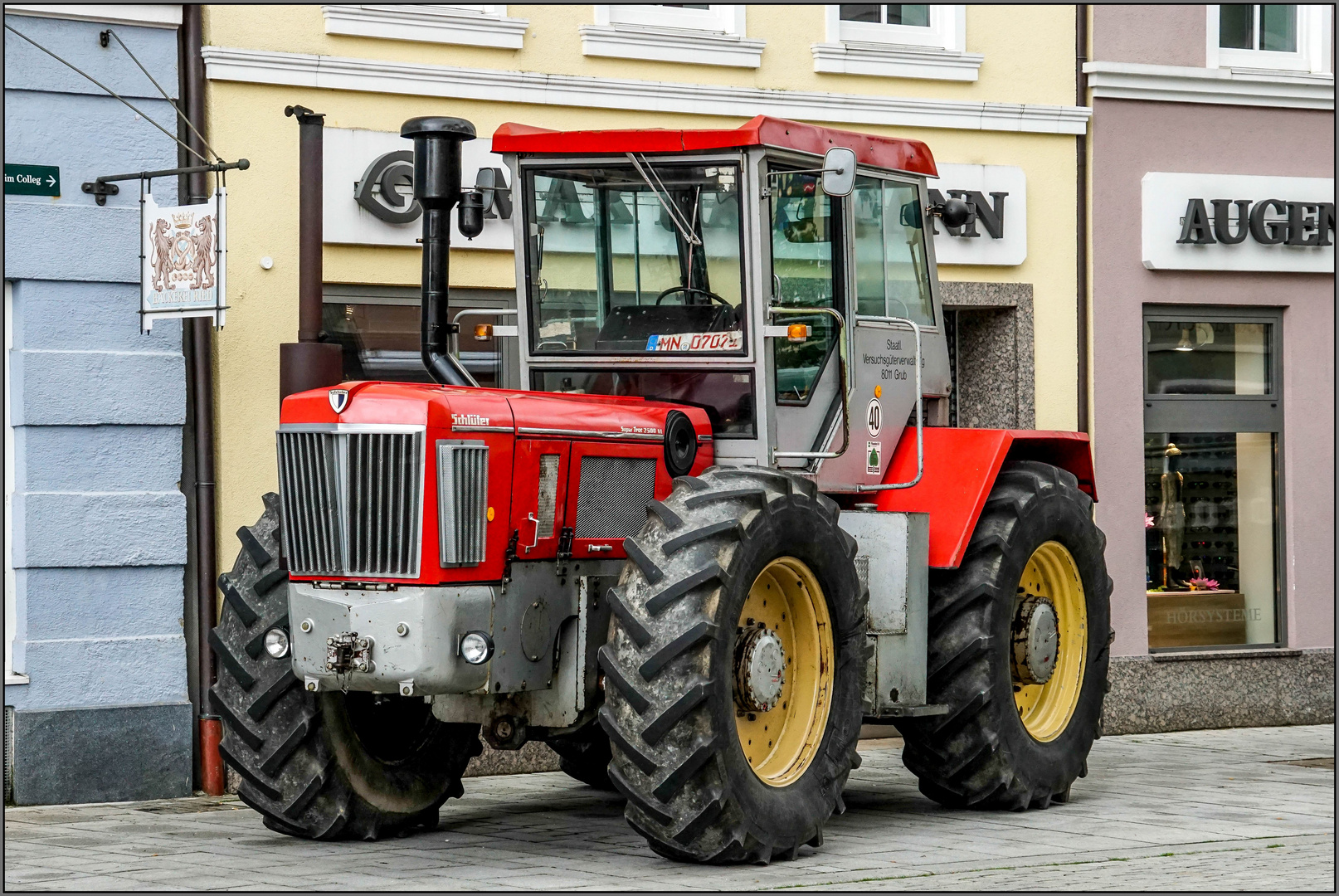

The Schluter Super-Trac 2500 VL is a tractor with a rated power of 240 hp, positioning it at the more powerful end of its class. This model was manufactured from 1984 to 1989. Key features include a 6-cylinder diesel engine and four-wheel drive with a hydrostatic transmission. The tractor weighs 9601 kg and is suitable for operations on areas of 1,500 acres or more.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
240 hp
Weight
9601 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
240 hp
Recorded weight
9601 kg
Transmissions
18-speed
Production years
1984-1989
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Dry disc brakesReference
standardReference
Engine
MAN 11.4L 6-cyl dieselReference
Fuel tank430.0 LReference
Engine179.0 kWReference
MAN D 2566 MEReference
dieselReference
6-cylinderReference
Displacement11.4 LReference
Bore/Stroke125 x 155 mmReference
Power179.0 kWReference
Rated RPM2200Reference
Torque RPM1500Reference
Transmission
18-speedReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
Total flow53.0 lpmReference
Total flow60.2 lpmReference
Rear lift8401 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase294 cmReference
Weight9601 kgReference
Front tire20.8R38Reference
Rear tire20.8R38Reference
Ag front20.8R38Reference
Ag rear20.8R38Reference
Length608 cmReference
Height335 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
