Tractor · 1988Unverified

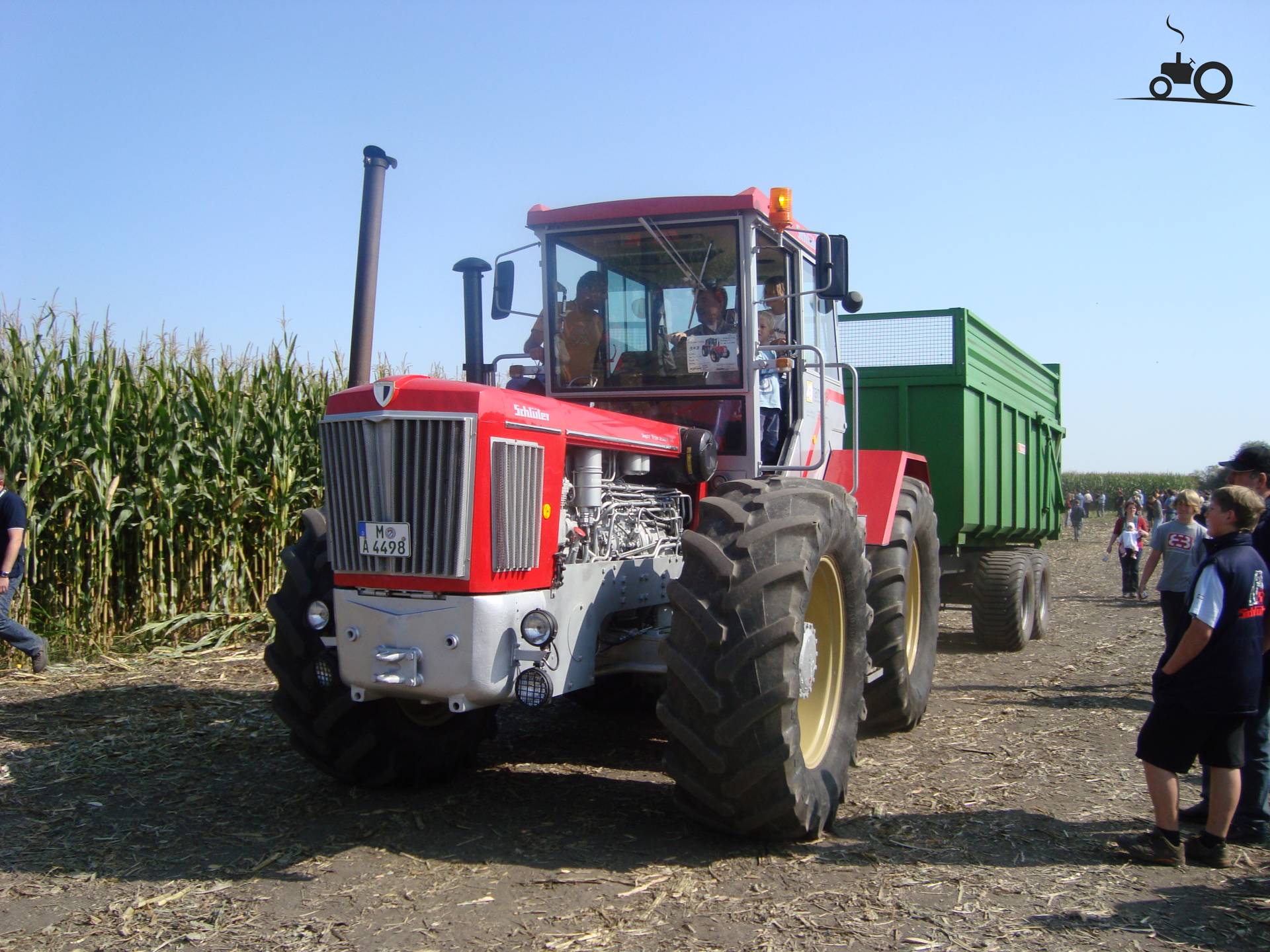

Schluter Super-Trac 3000 VL
Schluter Super-Trac 3000 VL · 280 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
280 hp
Weight
9701 kg
Hover a source tag to verify
Overview
ManufacturerSchluterReference
Drive4x4 4WDReference
Steeringhydrostatic powerReference
Dry disc brakesReference
standardReference
Engine
MAN 12.0L 6-cyl dieselReference
Fuel tank430.0 LReference
Engine208.8 kWReference
MAN D 2566 MTEReference
turbocharged dieselReference
6-cylinderReference
Displacement12.0 LReference
Bore/Stroke128 x 155 mmReference
Power208.8 kWReference
Rated RPM2200Reference
Torque1140.3 NmReference
Torque RPM1500Reference
Transmission
18-speedReference
Gears18 forward and 6 reverseReference
PTO & Hydraulics
Total flow53.0 lpmReference
Rear lift8401 kgReference
Rear PTO Type1000Reference
Dimensions
Wheelbase294 cmReference
Weight9701 kgReference
Front tire20.8R38Reference
Rear tire20.8R38Reference
Ag front20.8R38Reference
Ag rear20.8R38Reference
Length608 cmReference
Height335 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
