Lawn Tractor · 1999Unverified

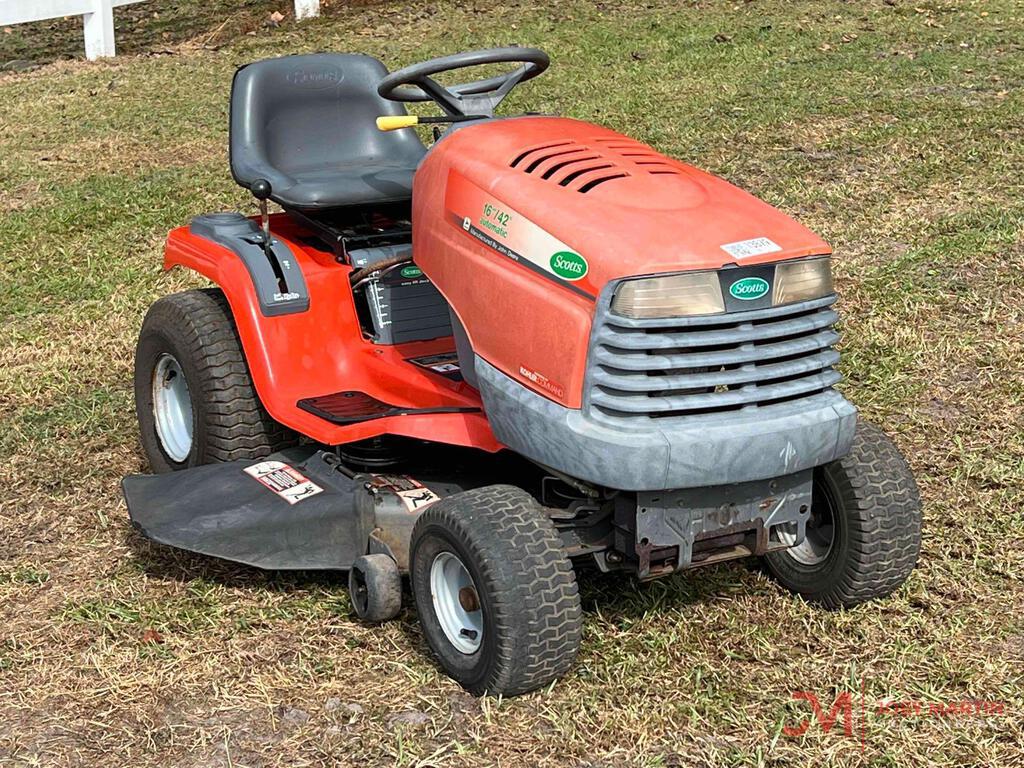

Scotts S1742
Scotts S1742 — Lawn tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
175 kg
Hover a source tag to verify
Overview
DistributorScottsReference
ManufacturerJohn DeereReference
Lawn tractorReference
Built in Greeneville, Tennessee, USAReference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Engine
17HP Briggs & Stratton 465cc 1-cyl gasolineReference
Fuel tank4.7 LReference
Briggs & Stratton 311777Reference
gasolineReference
1-cylinderReference
air-cooledReference
Displacement28.4 ciReference
Power12.7 kWReference
StarterelectricReference
Starter volts12Reference
Sparkplug gap0.762 mmReference
Oil capacity0.9 LReference
Transmission
5-speed unsynchronized gearReference
TransmissionDanaReference
Typeunsynchronized gearReference
Gears5 forward and 1 reverseReference
Dimensions
Weight175 kgReference
Front tire15x6.50-6Reference
Rear tire20x8.0-8Reference
Lawn/turf front15x6.50-6Reference
Lawn/turf rear20x8.0-8Reference
Length152 cmReference
Width91 cmReference
Height98 cmReference
Scotts S1742 attachments
42" mid-mount mower deckReference
S1742 Serial Numbers
Location:Serial number plate on fender deck under seat.Reference
1999010001Reference
2000035001Reference
2001120001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery CCA190Reference
Battery volts12Reference
Battery GroupBCI Group U1Reference
42" Mower deck
Typemid-mount ScottsReference
Cutting width106 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
