Tractor · 1953Unverified
SFV 201

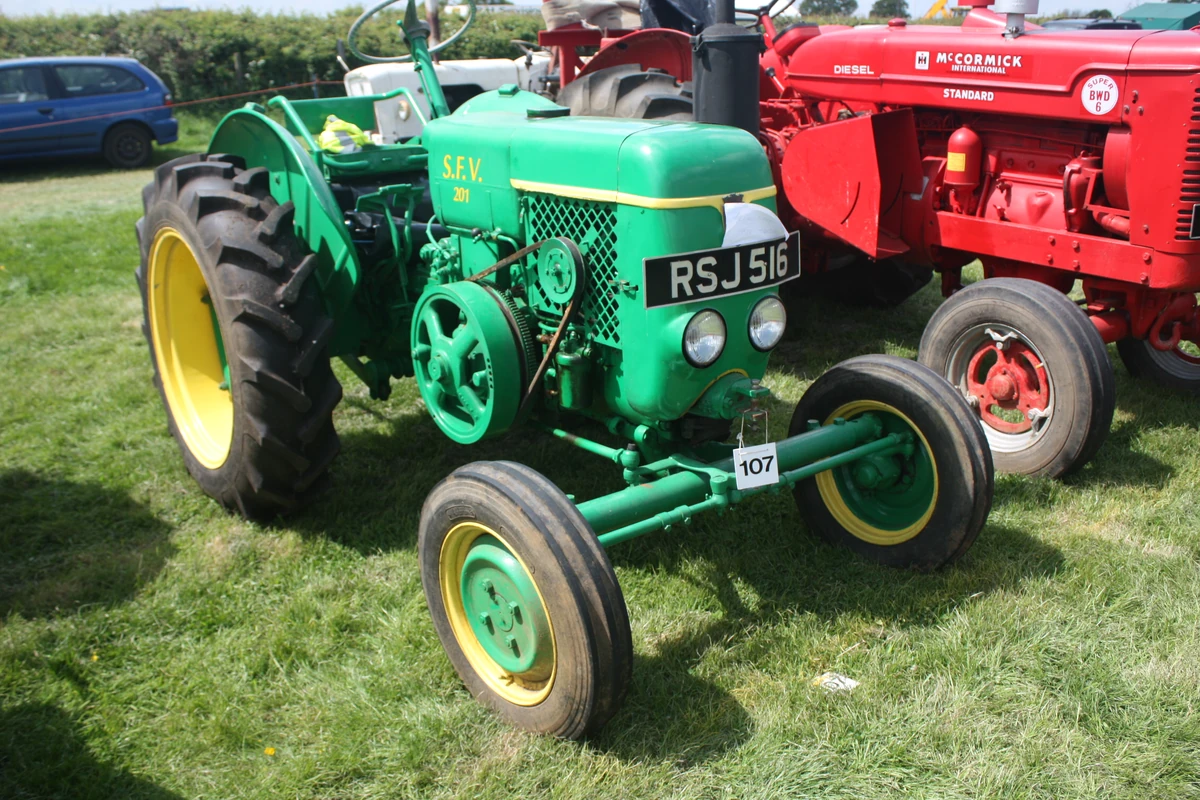

SFV 201 — Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Hover a source tag to verify
Overview
ManufacturerSFVReference
Utility tractorReference
Built in Vierzon, FranceReference
Two-wheel driveReference
Open operator station.Reference
Engine
SFV 3.2L 1-cyl dieselReference
Fuel tank50.0 LReference
Belt (claimed)18.6 kWReference
SFVReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke155 x 170 mmReference
Rated RPM1000Reference
Starter typeelectricReference
Coolant capacity17.0 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase164 cmReference
Front tire5.00-15Reference
Rear tire10-28Reference
Ag front5.00-15Reference
Ag rear10-28Reference
Length270 cmReference
Width127 cmReference
Height176 cmReference
Ground clearance35 cmReference
Capacities
Diameter32 cmReference
Width12 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
