Tractor · 1959Unverified

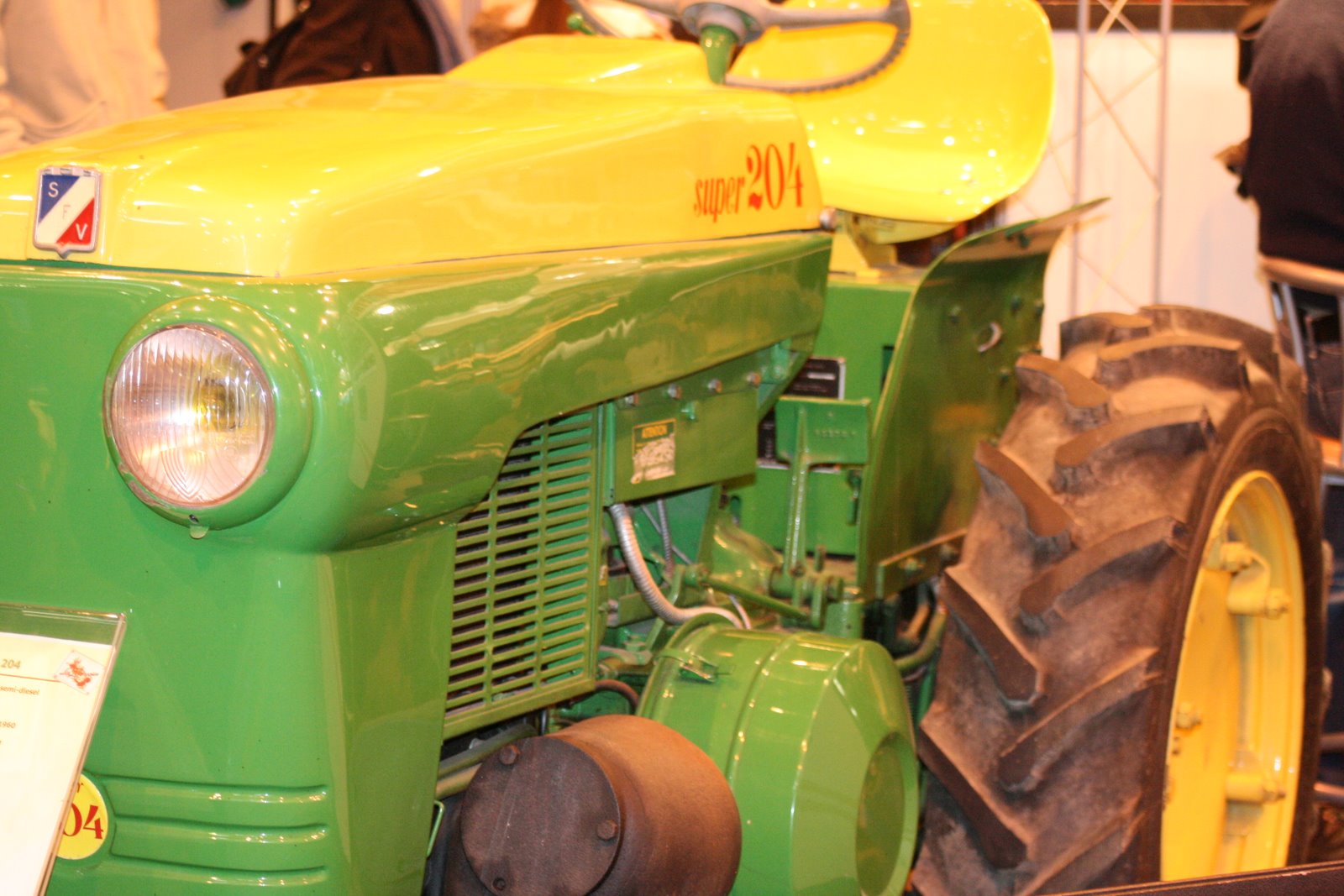

SFV 204
SFV 204 — Utility tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
1599 kg
Hover a source tag to verify
Overview
ManufacturerSFVReference
Utility tractorReference
Built in Vierzon, FranceReference
Two-wheel driveReference
Open operator station.Reference
Engine
SFV 3.2L 1-cyl dieselReference
Fuel tank46.9 LReference
Belt (claimed)20.1 kWReference
SFVReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Bore/Stroke155 x 170 mmReference
Rated RPM1100Reference
Starter typeelectricReference
Coolant capacity16.0 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@965Reference
Dimensions
Wheelbase164 cmReference
Weight1599 kgReference
Front tire5.00-15Reference
Rear tire10-28Reference
Ag front5.00-15Reference
Ag rear10-28Reference
Ag rear9-24Reference
Ag rear11-28Reference
Ag rear9-36Reference
Length298 cmReference
Height (steering wheel)162 cmReference
Ground clearance35 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
