Tractor · 1950Unverified

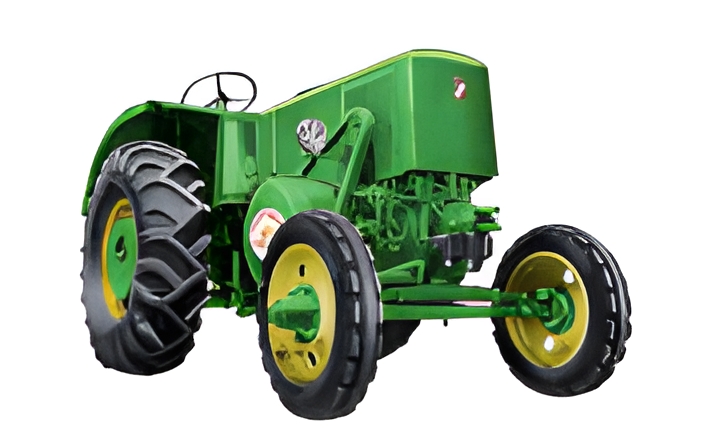

SFV 302
SFV 302 — Standard-tread tractor · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
2200 kg
Hover a source tag to verify
Overview
ManufacturerSFVReference
Standard-tread tractorReference
FactoriesVierzon, FranceReference
FactoriesCreusot, FranceReference
Two-wheel driveReference
Open operator station.Reference
Engine
SFV 5.4L 1-cyl dieselReference
Drawbar (claimed)20.1 kWReference
Belt (claimed)23.9 kWReference
SFVReference
dieselReference
1-cylinderReference
liquid-cooledReference
Displacement5.4 LReference
Bore/Stroke180 x 210 mmReference
Rated RPM800Reference
Starter typeelectricReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Weight2200 kgReference
Front tire6.60-19Reference
Rear tire12.75-24Reference
Ag front6.60-19Reference
Ag rear12.75-24Reference
Length295 cmReference
Width169 cmReference
Capacities
Diameter40 cmReference
Width15 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
