Tractor · 1950Unverified

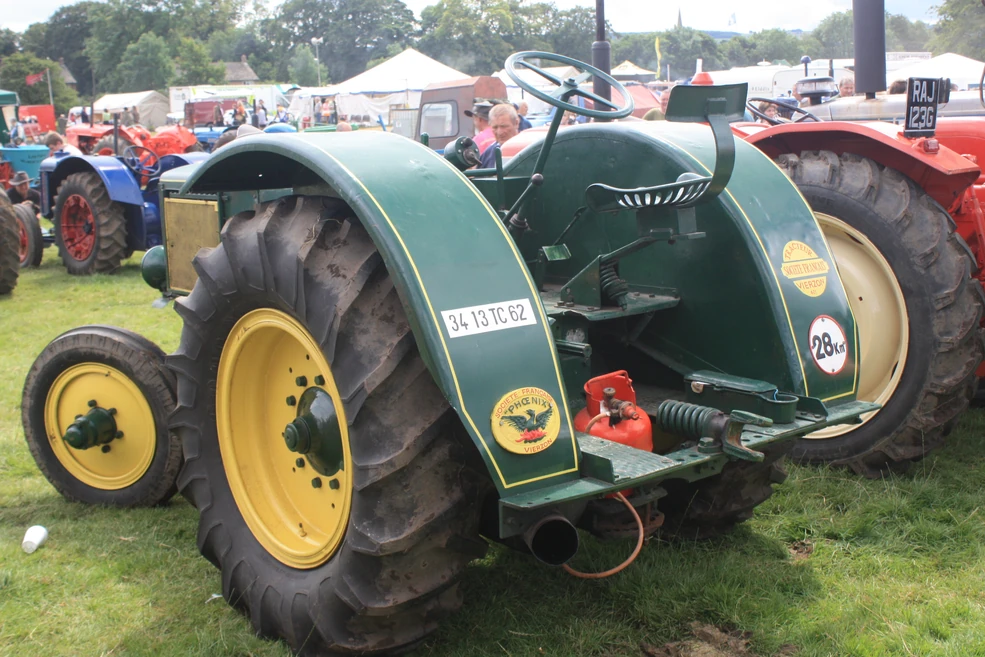

SFV 401

Name: SFV 401
Brand: SFV

SFV 401 — Standard-tread tractor · 40 hp. Reference specifications; pending source verification.

The SFV 401 is a tractor with a rated power output of 40 hp, categorising it as a lighter model in its class. Manufactured from 1950 to 1952, this model is equipped with a 1-cylinder diesel liquid-cooled engine, coupled with two-wheel drive and a 5-speed gearbox. Its listed operating weight is 3299 kg, and it is suited for operations covering areas of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

3299 kg

Catalogue coverage

Variants represented

Richest spec table

28 rows

Recorded power

40 hp

Recorded weight

3299 kg

Transmissions

5-speed gear

Production years

1950-1952

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSFVReference

Standard-tread tractorReference

Built in Vierzon, FranceReference

Two-wheel driveReference

Open operator station.Reference

Engine

SFV 12.8L 1-cyl dieselReference

Drawbar (claimed)29.8 kWReference

Belt (claimed)33.6 kWReference

SFVReference

dieselReference

1-cylinderReference

liquid-cooledReference

Displacement12.8 LReference

Bore/Stroke250 x 260 mmReference

Rated RPM650Reference

Transmission

5-speed gearReference

TypegearReference

Gears5 forward and 1 reverseReference

Dimensions

Wheelbase193 cmReference

Weight3299 kgReference

Front tire6.50-20Reference

Rear tire14-34Reference

Ag front6.50-20Reference

Ag rear14-34Reference

Ag rear12-38Reference

Length344 cmReference

Width180 cmReference

Height (steering wheel)189 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
