Tractor · 1940Unverified

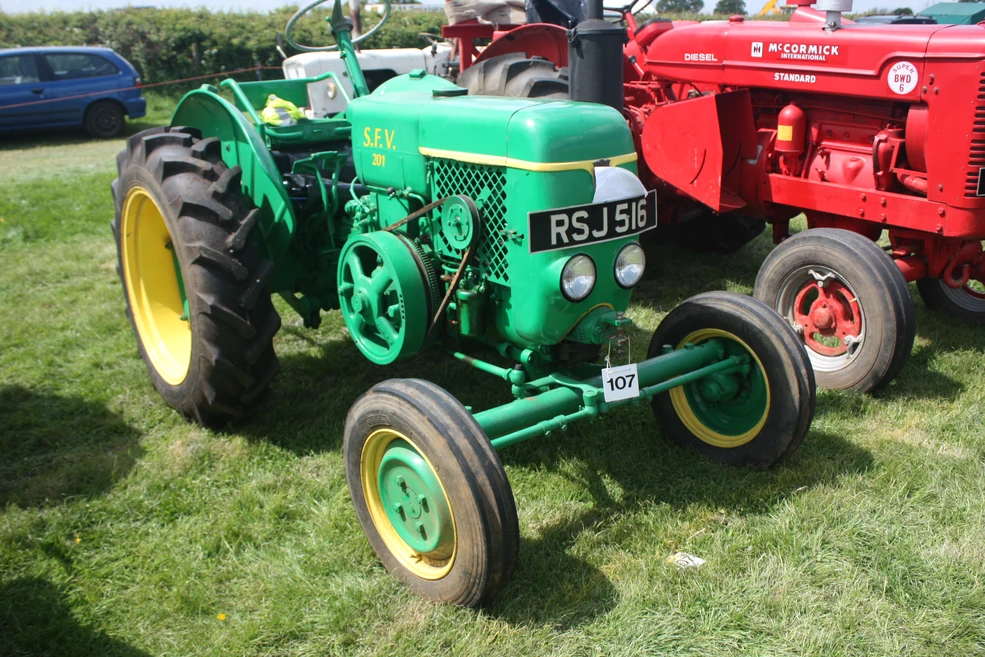

SFV HV1

Name: SFV HV1
Brand: SFV

SFV HV1 — Standard-tread tractor · 22 hp. Reference specifications; pending source verification.

The SFV HV1 is a tractor model rated at 22 hp — making it one of the more compact options in its class. The HV1 was manufactured from 1940 to 1946. Under the hood is a 1-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a 5-speed gearbox. Listed weight is 3000 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

22 hp

Weight

3000 kg

Catalogue coverage

Variants represented

Richest spec table

27 rows

Recorded power

22 hp

Recorded weight

3000 kg

Transmissions

5-speed gear

Production years

1940-1946

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerSFVReference

Standard-tread tractorReference

Built in Vierzon, FranceReference

Two-wheel driveReference

Open operator station.Reference

Engine

SFV 10.3L 1-cyl dieselReference

Drawbar (claimed)16.4 kWReference

Belt (claimed)32.8 kWReference

SFVReference

dieselReference

1-cylinderReference

liquid-cooledReference

Displacement10.3 LReference

Bore/Stroke225 x 260 mmReference

Rated RPM630Reference

Coolant capacity63.0 LReference

Transmission

5-speed gearReference

TypegearReference

Gears5 forward and 1 reverseReference

Dimensions

Wheelbase192 cmReference

Weight3000 kgReference

Front tire6.50-20Reference

Rear tire12.75-28Reference

Ag front6.50-20Reference

Ag rear12.75-28Reference

Length329 cmReference

Width175 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
